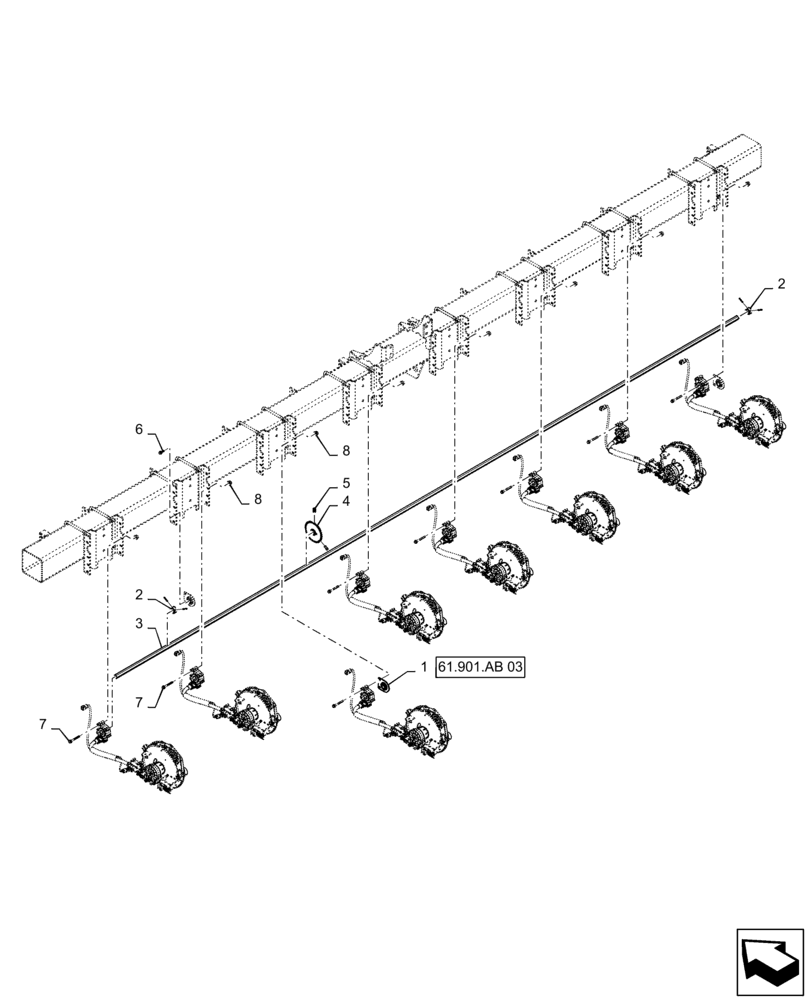

Запчасти Case IH 1225 EARLY RISER (61.901.AF[04]) - METERING DRIVE SHAFT FOR 8 ROW CABLE DRIVE (61) - METERING SYSTEM

1

102724A2

BALL BEARING,22.6mm ID

.875 Hex

3шт.

2

22224

COLLAR

7/8 Hex

2шт.

3

132421A1

BAR

Input 7/8 Hex

1шт.

4

353037A1

SPROCKET

34 Tooth

1шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

6

84553071

FLANGE BOLT

3/8 X 3"

16шт.

7

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

18шт.
