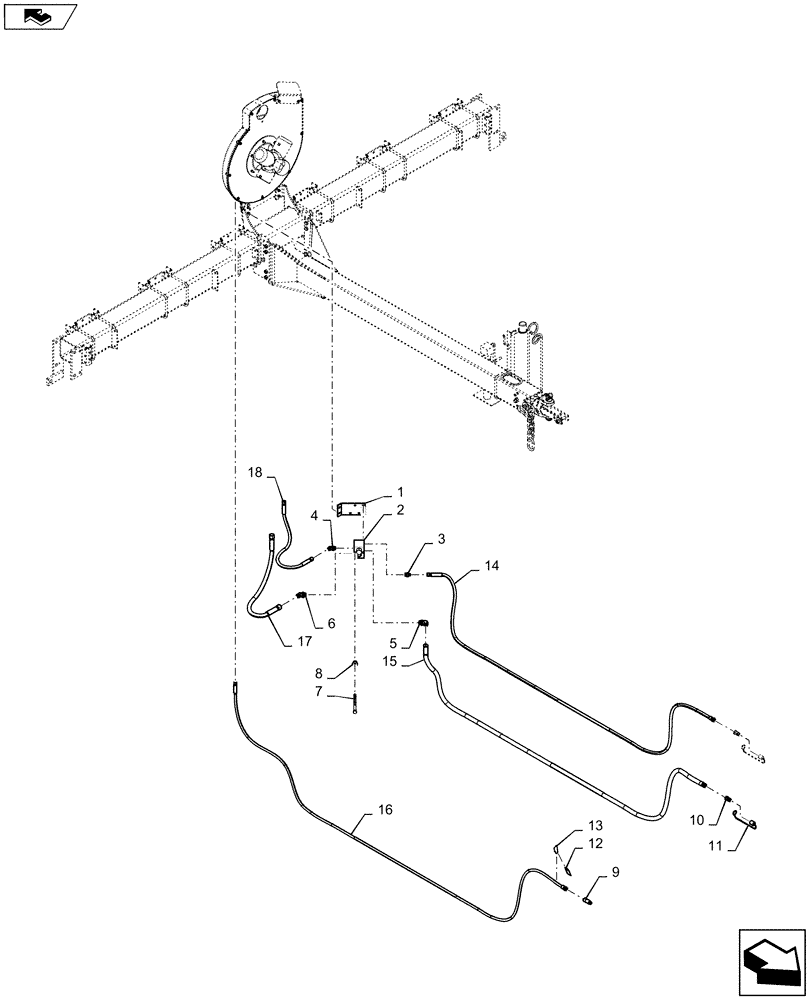

Запчасти Case IH 1225 EARLY RISER (35.745.AA[01]) - VACUUM FAN HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

381423A1

BRACKET

Block Mounting

2шт.

2

296823A2

VALVE

Flow Control

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

4

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

6

330334

SUPPORT

Elbow

1шт.

7

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

9

385358A1

QUICK MALE COUPLING,3/8"

1шт.

10

86592080

QUICK MALE COUPLING

2шт.

11

333722A1

CAP

Quick Coupler Green

2шт.

12

47432848

DECAL

Case Drain

1шт.

13

6033

CABLE TIE,6"

1шт.

14

47545140

HYDRAULIC HOSE

12.5mm ID X 5335 mm Long

1шт.

15

47542926

HYDRAULIC HOSE

19mm ID X 5080 mm Long

1шт.

16

47542938

HYDRAULIC HOSE

10 mm ID X 5715 mm Long

1шт.

17

345691A1

HYDRAULIC HOSE

19 mm ID X 915 mm Long

1шт.

18

1336924C1

HYDRAULIC HOSE

12.5 mm ID X 685 mm

1шт.
