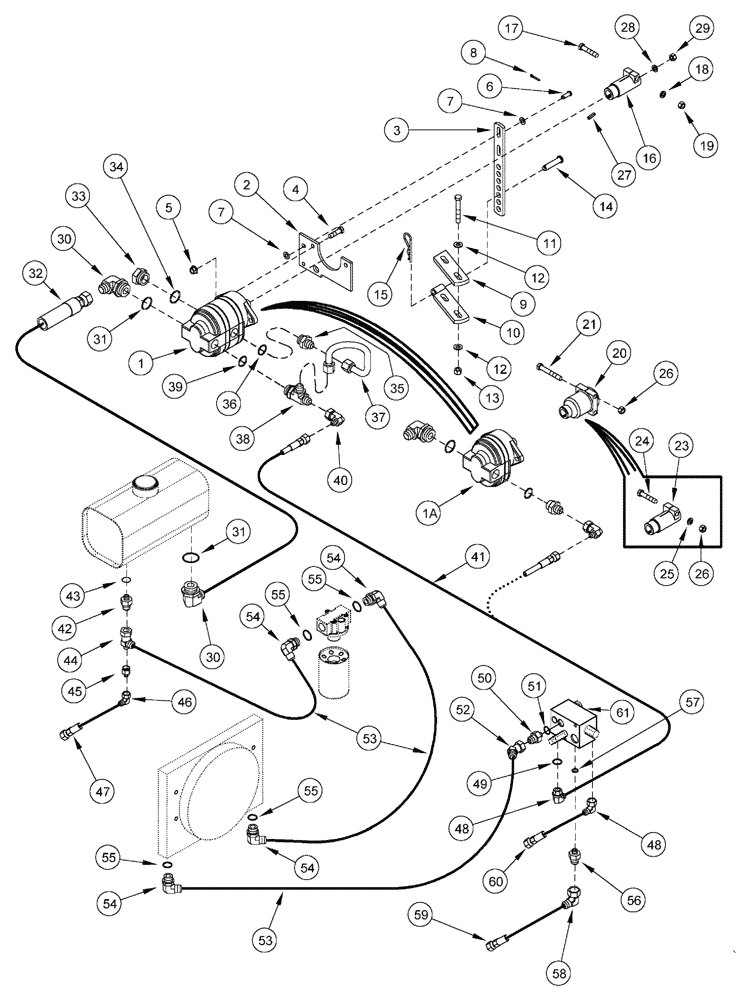

Запчасти Case IH 1225 EARLY RISER (88.100.35[01]) - HYDRAULIC PUMP KIT ATTACHMENT, 540 AND 1000 RPM (88) - ACCESSORIES

0

345792A2

KIT

540 rpm pump - ASM

1шт.

0

345793A2

KIT

1000 rpm pump (low displacement 2.37 in^3)

1шт.

1

115886A1

PUMP

gear 2.37 CID two section, used with 540 RPM pump

1шт.

1

D149152

PACKAGE, REPAIR

minor (not shown)

2шт.

1

A45046

WEAR PLATE

pump (not shown)

2шт.

1

D54169

SEALING RING

ring pump retaining (not shown)

2шт.

1

D54168

SEAL

load (not shown)

2шт.

1

D54167

SEAL

pre-load (not shown)

2шт.

1

A23903

OIL SEAL

oil, steering gear housing (not shown)

1шт.

1a

177705A1

PUMP

hydraulic, one section, used with 1000 RPM pump

1шт.

1a

D149152

PACKAGE, REPAIR

minor (not shown)

1шт.

1a

A45046

WEAR PLATE

pump (not shown)

2шт.

1a

D54169

SEALING RING

ring pump retaining (not shown)

2шт.

1a

D54168

SEAL

load (not shown)

2шт.

1a

D54167

SEAL

pre-load (not shown)

2шт.

1a

A23903

OIL SEAL

oil, steering gear housing (not shown)

1шт.

2

437630A1

PLATE

pump mounting

1шт.

3

437631A1

BRACKET

adjusting

1шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

6

86624068

HEADED PIN,7/16" x 1 1/4", G2

2шт.

7

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

8

394818

COTTER PIN,M5 x 25

2шт.

9

437632A1

STRAP

1шт.

10

437633A1

STRAP

1шт.

11

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

12

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

13

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

14

86624085

HEADED PIN,15.88mm OD x 69.85mm L

1шт.

15

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

16

179633A1

COUPLING

assembly, differential bearing LH, used with 540 RPM pump

1шт.

17

86622971

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

19

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

20

1958268C1

COUPLING

1-3/4", used with 1000 RPM pump

1шт.

21

86622973

BOLT,Hex, 1/2" - 20 x 3 1/2", Gr 5

2шт.

23

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

1-3/8", used with 1000 RPM pump

1шт.

24

86622971

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

26

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

27

177192C1

KEY

1/4" square x 1-7/32"

1шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

29

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

30

86513541

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

31

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

32

357055A1

HOSE,31.75mm ID x 1524mm L, SAE 100R4

1.25" x 60"

1шт.

33

86624101

PLUG,Hex Hd, 1 5/8"-12 ORB

1шт.

34

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

35

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

36

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

37

221078A1

HYD TUBE

assembly, single module

1шт.

38

86624131

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

used with 540 RPM pump

1шт.

39

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

40

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

41

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

1шт.

42

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

43

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

86624129

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

45

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

46

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

47

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

48

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

49

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

50

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

51

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

52

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

53

357053A1

HOSE

3/4" x 35"

3шт.

54

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

4шт.

55

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

56

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

57

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

58

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

59

357054A1

HOSE

3/4" x 85"

1шт.

60

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

61

84226974

FLOW CONTROL VALVE

Valve

1шт.

62

348321A2

COOLER, OIL

1шт.
