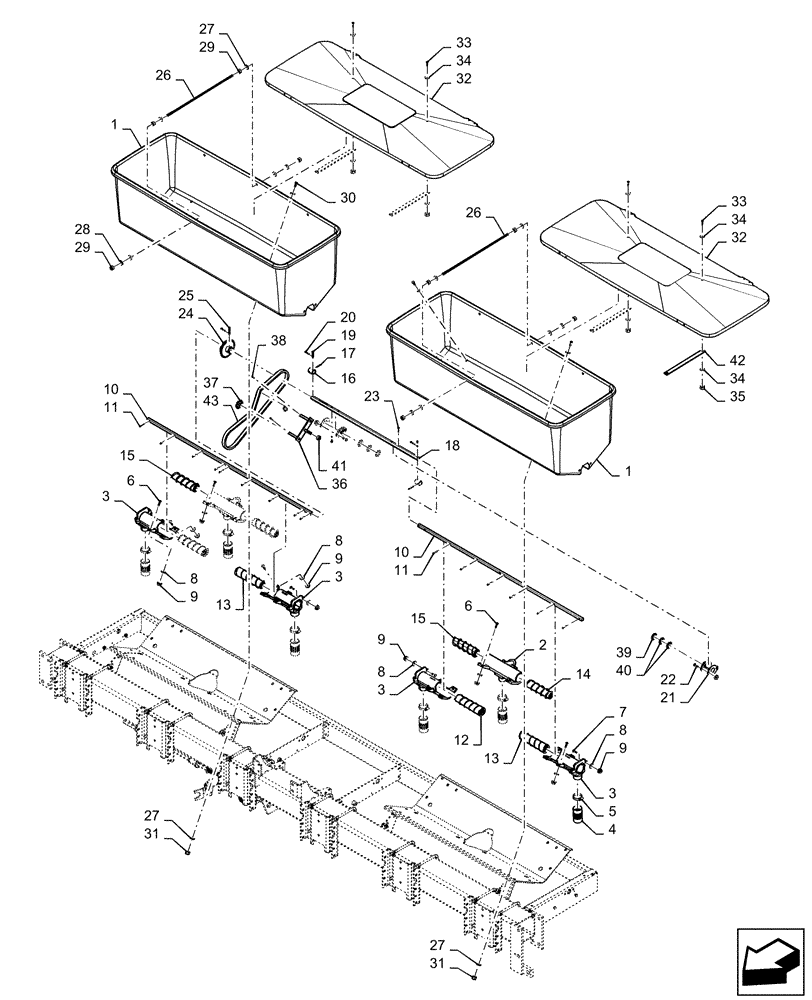

Запчасти Case IH 1225 EARLY RISER (63.102.AB[02]) - DRY FERTILIZER UPPER 6 ROW (63) - CHEMICAL APPLICATORS

1

140952C1

HOPPER

Triple Outlet

2шт.

2

410418A1

HOUSING

Auger Feed Center

2шт.

3

410419A1

HOUSING

Auger Inner

4шт.

4

141007C1

HOSE,35-54 mm ID x 100.011 mm

6шт.

5

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

6шт.

6

280827

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

24шт.

7

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

8

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

32шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

36шт.

10

1261164C1

BAR

Auger Drive

2шт.

11

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

16шт.

12

410422A1

AUGER

Outer Fast Feed Left

2шт.

13

410423A1

AUGER

Outer Fast Feed Right

2шт.

14

410424A1

AUGER

Inner Fast Feed Left

2шт.

15

410425A1

AUGER

Inner Fast Feed Right

2шт.

16

141771C2

COUPLING,27.05mm ID x 33.4mm OD x 36mm L

2шт.

17

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

18

141770C2

BAR

Input 7/8"

1шт.

19

86624075

HEADED PIN,6.35mm OD x 44.45mm L

2шт.

20

544063R1

HAIR PIN COTTER

3шт.

21

134158C92

BALL BEARING,22.5mm ID

2шт.

22

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

23

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

24

1267911C1

SPROCKET

Dry Fertilizer

1шт.

25

86624077

HEADED PIN,6.35mm OD x 50.8mm L

1шт.

26

137171C2

STEM

Hopper

6шт.

27

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

56шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

29

9628503

NUT,3/8"-16, G5

24шт.

30

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

31

9637692

NUT,3/8"-16, Gr B

16шт.

32

140954C4

COVER

Lid

2шт.

33

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

34

86624141

WASHER,0.28" ID x 1.12" OD x 0.06" Thk

8шт.

35

87034810

NUT,1/4"-20, GA

4шт.

36

87461091

ARM

Chain

1шт.

37

472344R3

SPROCKET

Idler

2шт.

38

87397

COTTER PIN,3/16" OD x 1" L

2шт.

39

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

40

86624171

WASHER,1.03" ID x 1.75" OD x 0.06" Thk

4шт.

41

280431

NUT,1/2"-13, G5

1шт.

42

137170C1

STRAP

Lid

4шт.

43

84496651

CHAIN

1шт.
