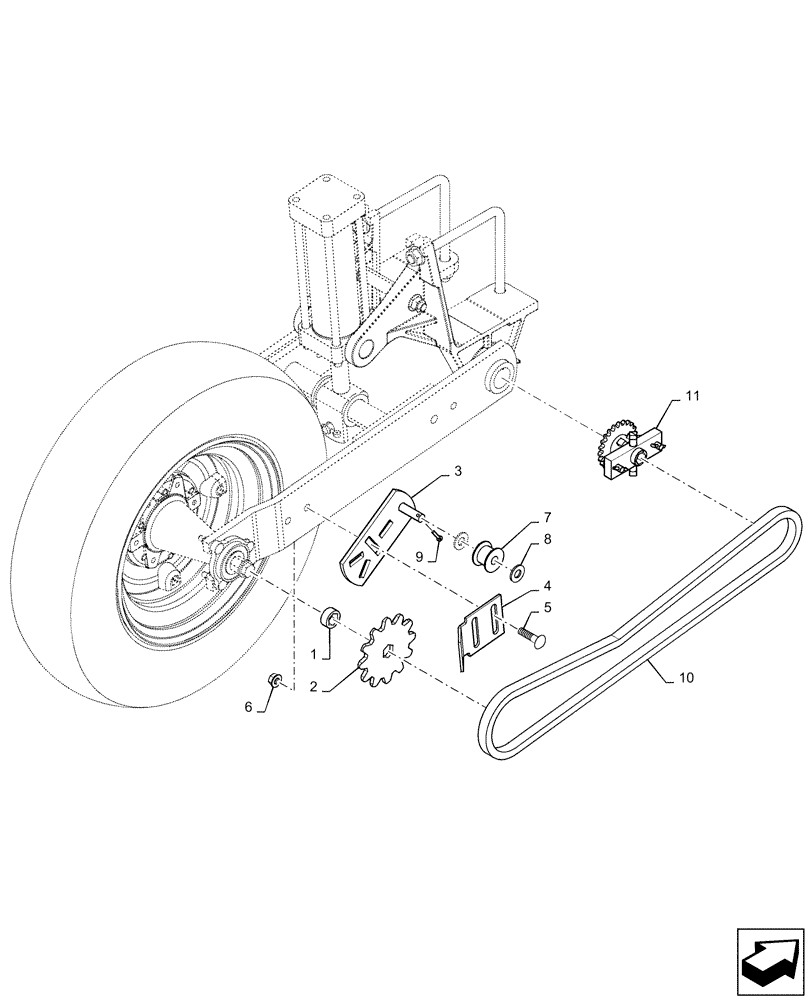

Запчасти Case IH 1225 EARLY RISER (61.901.AG[04]) - METER DRIVE WHEEL MOUNT LEFT (61) - METERING SYSTEM

1

90376C2

SPACER

Hex Shaft

1шт.

2

1277737C1

SPROCKET

Drive Wheel

1шт.

3

87461086

PLATE

Idler Painted

1шт.

4

87461087

SCRAPER

Palte

1шт.

5

280624

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

6

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

7

1277726C1

ROLLER,48mm OD x 34mm L

Idler

1шт.

8

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

9

87397

COTTER PIN,3/16" OD x 1" L

1шт.

10

84425921

CHAIN

Wheel Drive

1шт.

11

1277926C92

RATCHET

23 Tooth

1шт.
