(61.901.AF[05]) - METERING DRIVE SHAFT FOR 6 ROW MECHANICAL TRANS

Запчасти Case IH 1225 EARLY RISER (61.901.AF[05]) - METERING DRIVE SHAFT FOR 6 ROW MECHANICAL TRANS (61) - METERING SYSTEM

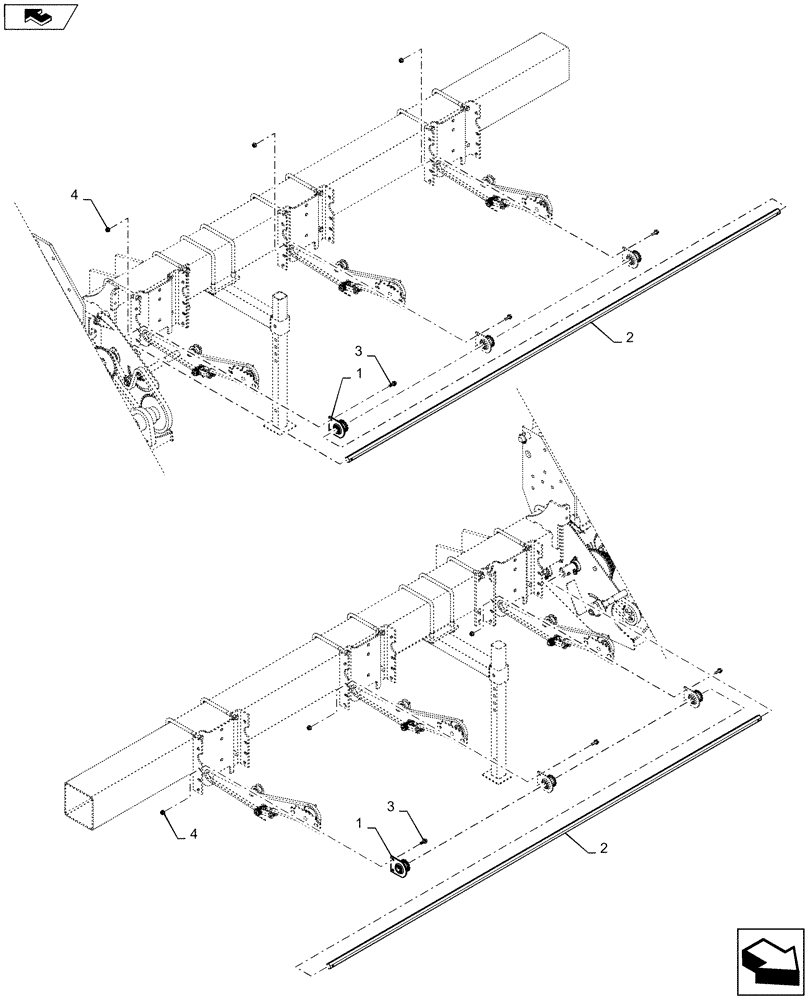

Схема запчастей Case IH 1225 EARLY RISER - (61.901.AF[05]) - METERING DRIVE SHAFT FOR 6 ROW MECHANICAL TRANS (61) - METERING SYSTEM
3
2
1
3
4
1
4
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 Tooth

6шт.

2

405407A1

SHAFT

22 mm Hex X 1920 mm

2шт.

3

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

4

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

12шт.

Выбрано товаров: 4
