(61.901.AF[01]) - METERING DRIVE SHAFT FOR 6 ROW CHAIN DRIVE

Запчасти Case IH 1225 EARLY RISER (61.901.AF[01]) - METERING DRIVE SHAFT FOR 6 ROW CHAIN DRIVE (61) - METERING SYSTEM

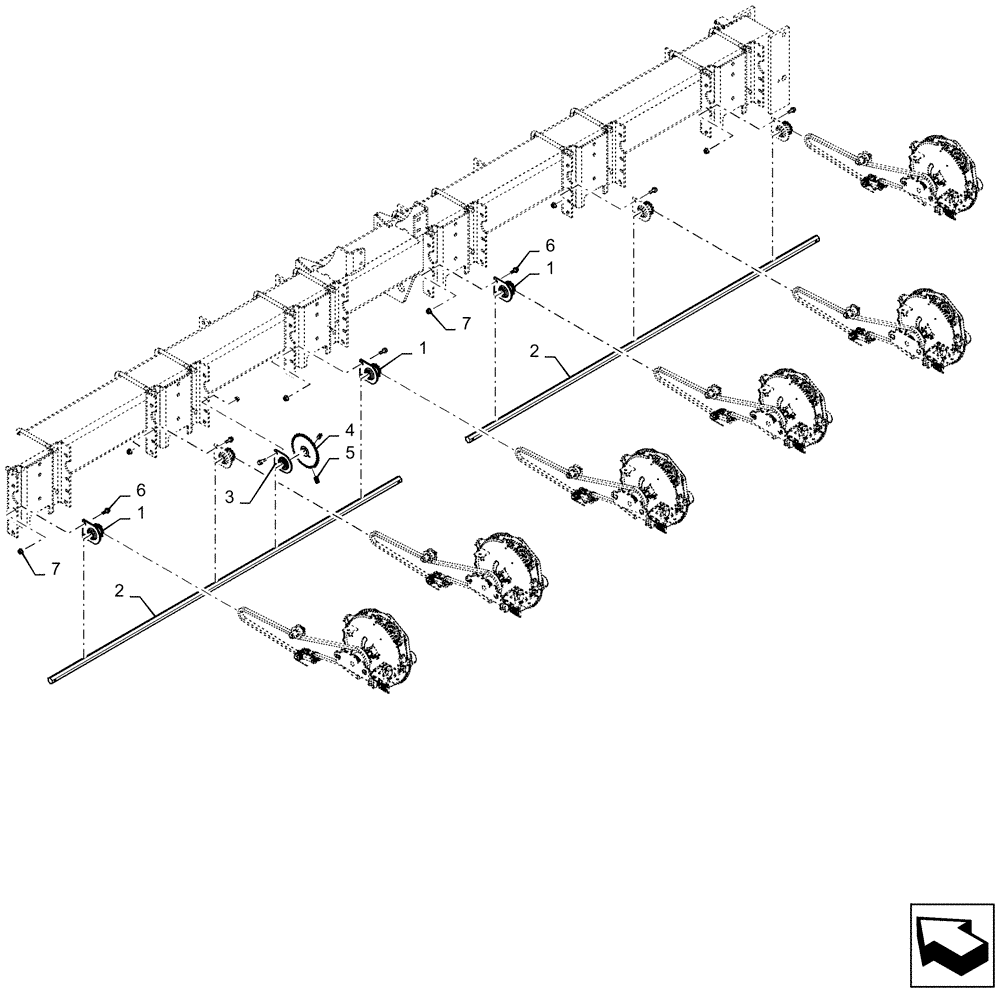

Схема запчастей Case IH 1225 EARLY RISER - (61.901.AF[01]) - METERING DRIVE SHAFT FOR 6 ROW CHAIN DRIVE (61) - METERING SYSTEM
7
7
3
2
4
2
1
6
5
1
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

6шт.

2

405407A1

SHAFT

22 mm Hex X 1920 mm

2шт.

3

102724A2

BALL BEARING,22.6mm ID

.875 Hex

1шт.

4

353037A1

SPROCKET

34 Tooth

1шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

6

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.

Выбрано товаров: 7
