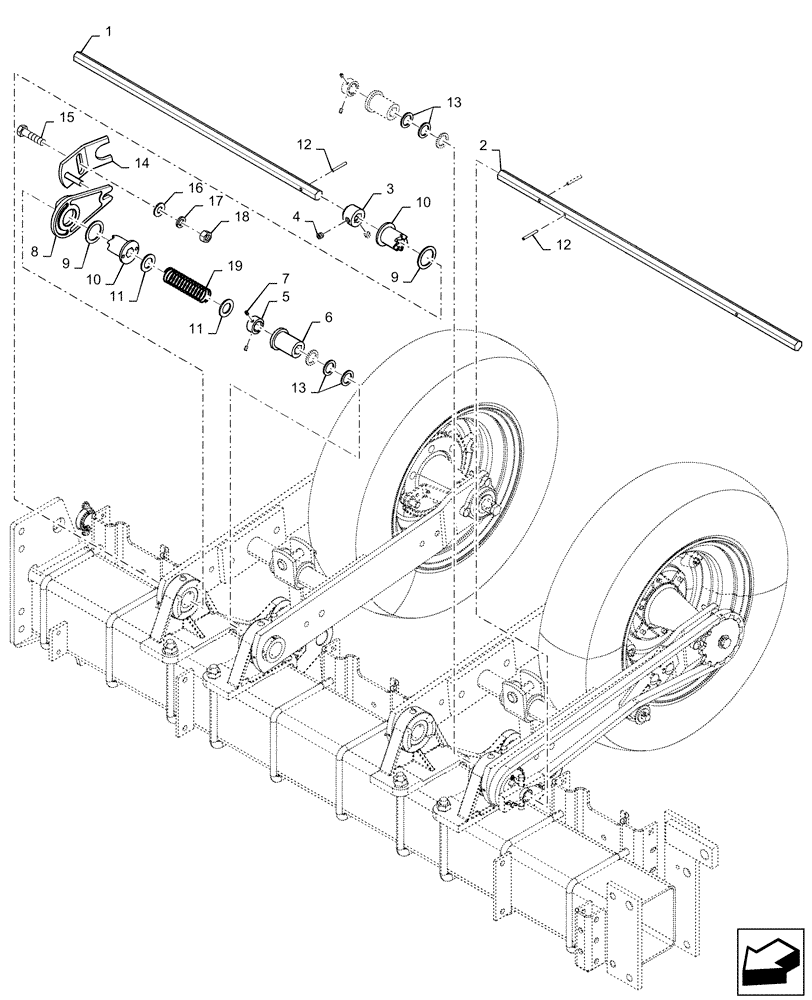

Запчасти Case IH 1225 EARLY RISER (61.901.AB[05]) - MECHANICAL DRIVELINE 6 ROW (61) - METERING SYSTEM

1

90559C1

SHAFT

Transmission Input 7/8 Hex

1шт.

2

90558C2

BAR

Transmission Input 7/8 Hex

1шт.

3

87461085

SPROCKET

Hub

1шт.

4

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

5

22224

COLLAR

7/8 Hex

1шт.

6

90335C2

BUSHING

Drive Shaft

2шт.

7

84523394

KEYWAY

2шт.

8

87502661

PLATE

Casting Clutch

1шт.

9

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

1.656 X 2.25 X 0.105"

2шт.

10

1264314C1

CLUTCH

Drive Right Red

2шт.

11

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

12

86624099

PIN,1/4" x 1 3/4", Coiled

3шт.

13

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

14

87461084

BRACKET

Clutch

1шт.

15

87630

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

1шт.

16

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

17

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

18

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

19

87461083

SPRING

Clutch Painted

1шт.
