(61.901.AB[04]) - METER CABLE DRIVE ASSEMBLY WITH CLUTCH

Запчасти Case IH 1225 EARLY RISER (61.901.AB[04]) - METER CABLE DRIVE ASSEMBLY WITH CLUTCH (61) - METERING SYSTEM

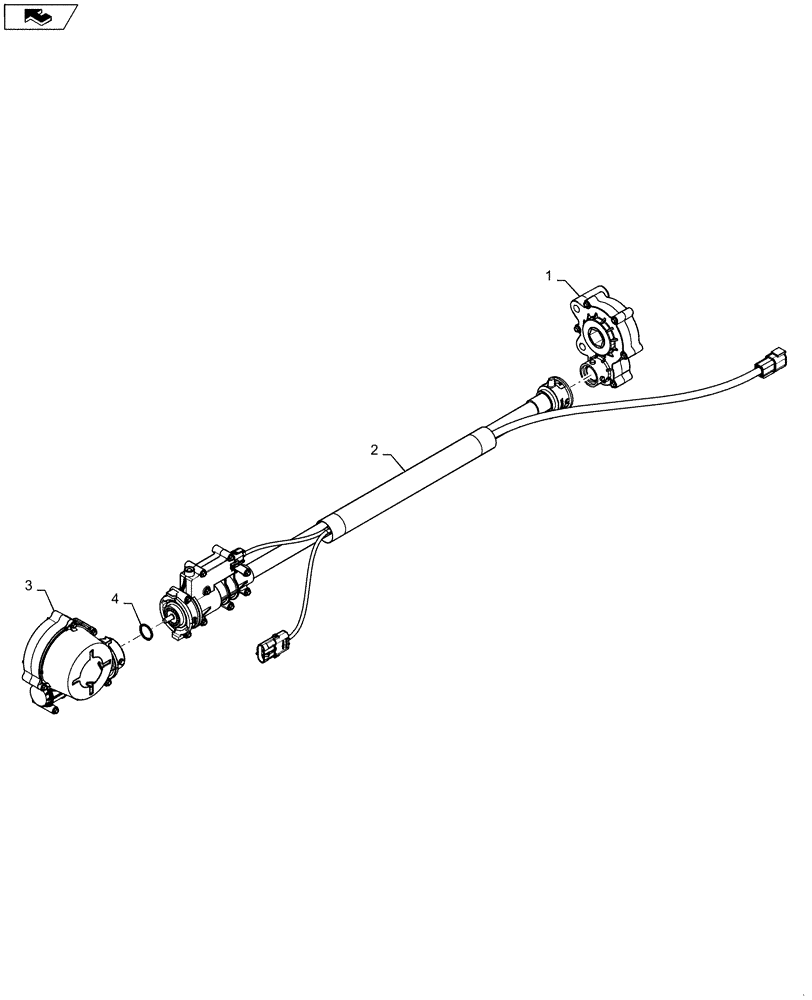

Схема запчастей Case IH 1225 EARLY RISER - (61.901.AB[04]) - METER CABLE DRIVE ASSEMBLY WITH CLUTCH (61) - METERING SYSTEM
2
4
1
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84534507

GEARBOX

Row Unit Drive Front

1шт.

2

84534502

DRIVE

Cable With Clutch

1шт.

3

84534508

GEARBOX

Row Unit Drive Meter Rear

1шт.

4

47684399

SEAL

Quad Ring

1шт.
