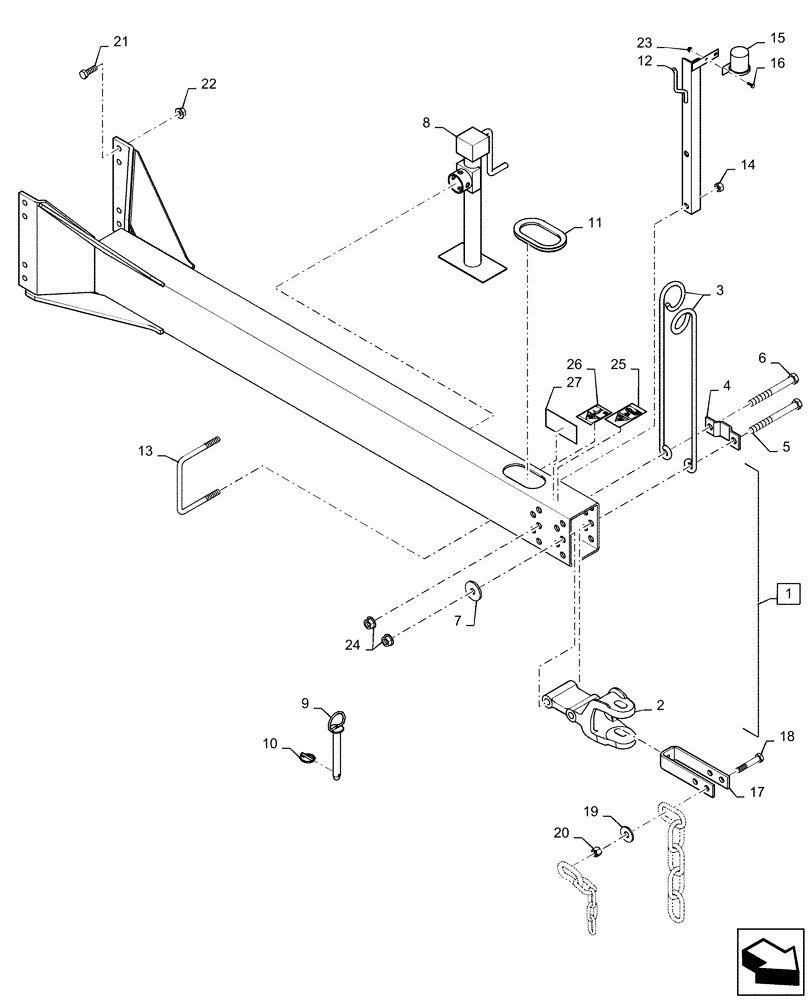

Запчасти Case IH 1225 EARLY RISER (39.110.AA[01]) - RIGID HITCH (39) - FRAMES AND BALLASTING

1

47570935

HITCH

Rigid Hitch Painted Incl Decals Incl 25 - 27

1шт.

2

1279040C1

CLEVIS

Hitch Tongue Red

1шт.

3

1279237C1

SUPPORT

Hose

2шт.

4

137098C1

SUPPORT

Pump

1шт.

5

281036

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

1шт.

6

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

7

R52105

WASHER,19.45mm ID x 63.5mm OD x 6mm Thk

1шт.

8

119354C1

JACK

Stand

1шт.

9

1277850C1

HITCH PIN,36.88mm OD x 239mm L

1шт.

10

A30338

PIN

Link

1шт.

11

396074A1

PROTECTION STRIP

Trim

1шт.

12

404915A1

SUPPORT

Hose

1шт.

13

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

1шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

15

382110A1

CONTACT HOUSING

7 Pin Connector

1шт.

16

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

17

1279163C1

CLEVIS COUPLING

1шт.

18

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

19

86624159

WASHER,0.78" ID x 2" OD x 0.18" Thk

1шт.

20

86639566

NUT,5/8"-11, GB

1шт.

21

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

8шт.

22

86977731

FLANGE NUT,Hex Serr, 5/8" - 11, Gr 5

5/8"

8шт.

23

86624020

FLANGE NUT,Flg, 1/4"-20.G5

2шт.

24

86511835

NUT,Flg, 3/4"-10, G5

2шт.

25

47392435

DECAL

Tractor Speed Control

1шт.

26

47433182

DECAL

Chemical Hazard

1шт.

27

47358801

CAUTION DECAL

ISO

1шт.
