Запчасти Case IH 1225 EARLY RISER (55.516.AE[01]) - HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH FOR 6 ROW (55) - ELECTRICAL SYSTEMS

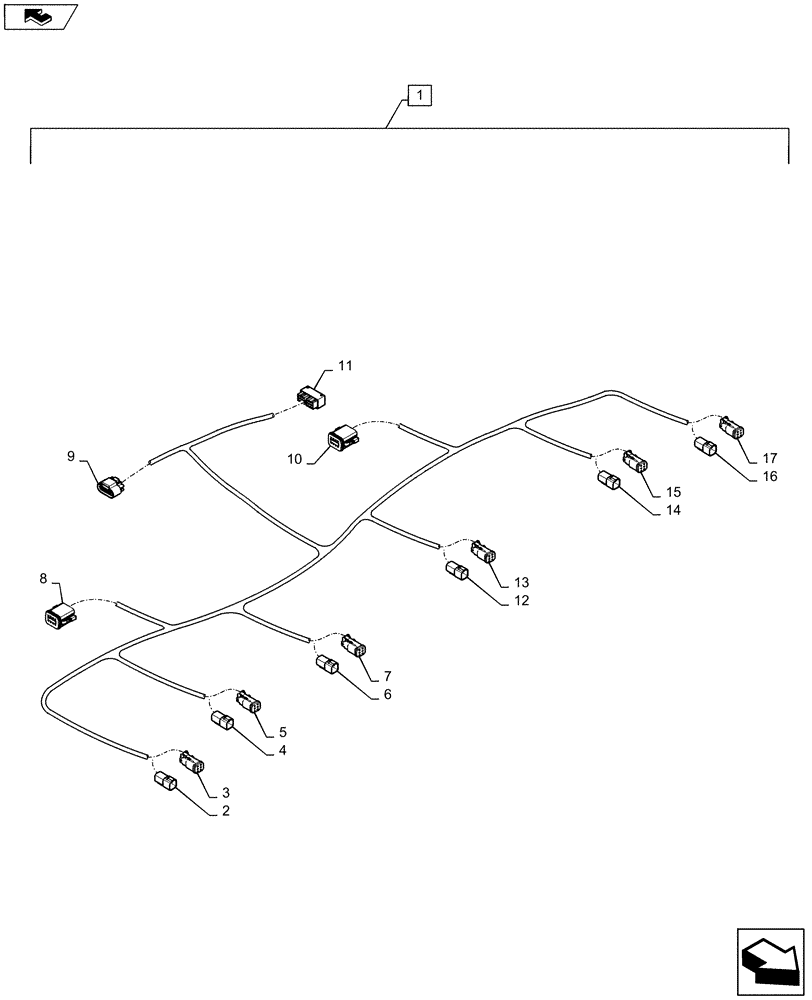

Схема запчастей Case IH 1225 EARLY RISER - (55.516.AE[01]) - HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH FOR 6 ROW (55) - ELECTRICAL SYSTEMS
home
17
8
16
4
3
15
7
5
2
12
10
9
11
14
13
1
6

Артикул

Название

Примечание

Количество

1

84540218

WIRE HARNESS

Electric Clutch 6 Row 30", Incl 2 - 17

1шт.

2

87700106

ELEC CONNECTOR

Seed Sensor 4

1шт.

3

87700107

ELEC CONNECTOR

Clutch And Seed 4

1шт.

4

87700106

ELEC CONNECTOR

Seed Sensor 5

1шт.

5

87700107

ELEC CONNECTOR

Clutch And Seed 5

1шт.

6

87700106

ELEC CONNECTOR

Seed Sensor 6

1шт.

7

87700107

ELEC CONNECTOR

Clutch And Seed 6

1шт.

8

87700325

ELEC CONNECTOR,Female, 8 Cavities

Left Wing Clutches

1шт.

9

84137509

ELEC CONNECTOR

Clutch Option

1шт.

10

87700325

ELEC CONNECTOR,Female, 8 Cavities

Right Wing Clutches

1шт.

11

84138326

ELEC CONNECTOR

Clutch ECU

1шт.

12

87700106

ELEC CONNECTOR

Seed Sensor 7

1шт.

13

87700107

ELEC CONNECTOR

Seed And Clutch 7

1шт.

14

87700106

ELEC CONNECTOR

Seed Sensor 8

1шт.

15

87700107

ELEC CONNECTOR

Seed And Clutch 8

1шт.

16

87700106

ELEC CONNECTOR

Seed Sensor 9

1шт.

17

87700107

ELEC CONNECTOR

Seed And Clutch 9

1шт.

Выбрано товаров: 17
