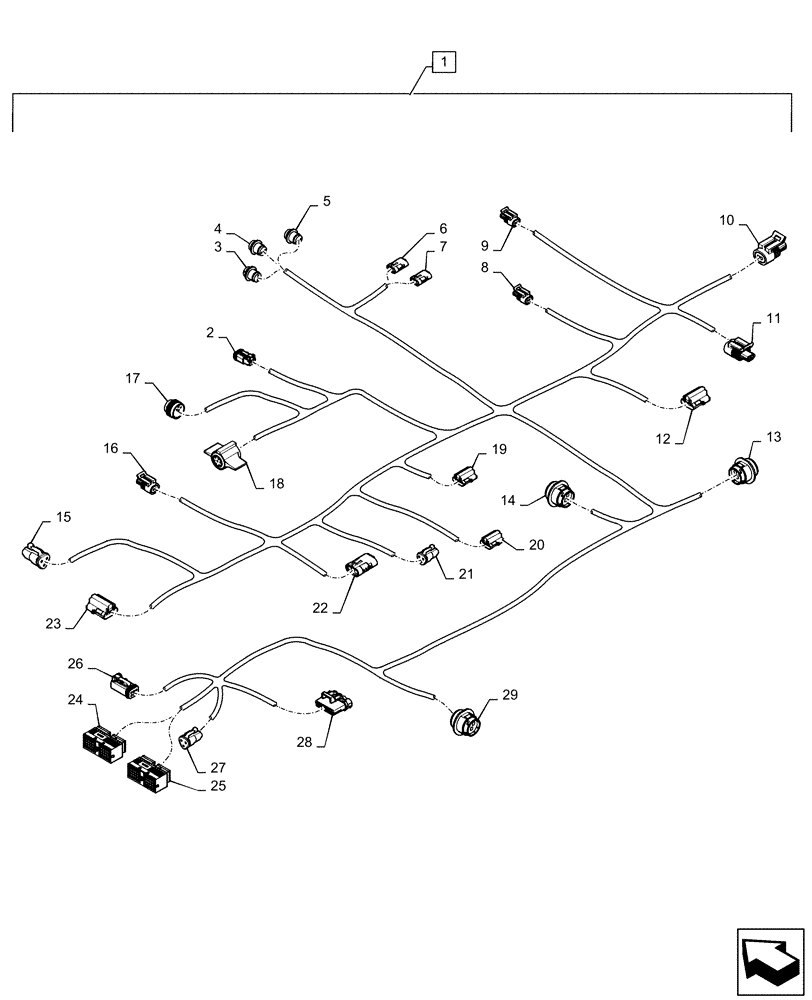

Запчасти Case IH 1225 EARLY RISER (55.511.AA[03]) - MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

84540083

WIRE HARNESS

Main Incl 2 - 29

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux Power

1шт.

3

84137498

ELEC CONNECTOR

Hyd Pressure Switch

1шт.

4

84137521

WIRE CONNECTOR

RH Marker

1шт.

5

84137521

WIRE CONNECTOR

LH Marker

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Seed Valve

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

ASM Fan

1шт.

8

87696551

CONTACT HOUSING,Female, 3 Pole

Left Wheel Speed Sensor

1шт.

9

87696551

CONTACT HOUSING,Female, 3 Pole

Right Wheel Speed Sensor

1шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

Right Warning Light

1шт.

11

82012093

WIRE CONNECTOR

Frame Position

1шт.

12

87688716

ELEC CONNECTOR,Female, 3 Cavities

Right Light

1шт.

13

84137509

ELEC CONNECTOR

Air Compressor

1шт.

14

84137495

TERMINAL

Clutch Option

1шт.

15

87692837

WIRE CONNECTOR,Female, 3 Pole

Vacuum Sensor

1шт.

16

87692855

CONTACT HOUSING,Male, 2 Cavities

Left Warning Light

1шт.

17

87703855

MULTIPOLE CONNECTOR,Female, 9 Cavities

Tractor

1шт.

18

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

Tractor Lights

1шт.

19

87688716

ELEC CONNECTOR,Female, 3 Cavities

Left Light

1шт.

20

87696551

CONTACT HOUSING,Female, 3 Pole

Seed

1шт.

21

87695580

ELEC CONNECTOR,Female, 3 Pole

Frame Position

1шт.

22

82012093

WIRE CONNECTOR

Impement Status

1шт.

23

87696551

CONTACT HOUSING,Female, 3 Pole

Bin Level

1шт.

24

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

ECU 1A

1шт.

25

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

ECU 1B

1шт.

26

87694714

ELEC CONNECTOR,Female, 6 Cavities

Can Term

1шт.

27

87695549

ELEC CONNECTOR,Female, 3 Cavities

Can 2 Term

1шт.

28

87692817

ELEC CONNECTOR

Seed Sensor Bus

1шт.

29

87706509

SOCKET/RECEPTACLE

CAL Switch

1шт.

30

87601142

ELEC CONNECTOR,Female, 6 Cavities

Terminator

1шт.

31

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.
