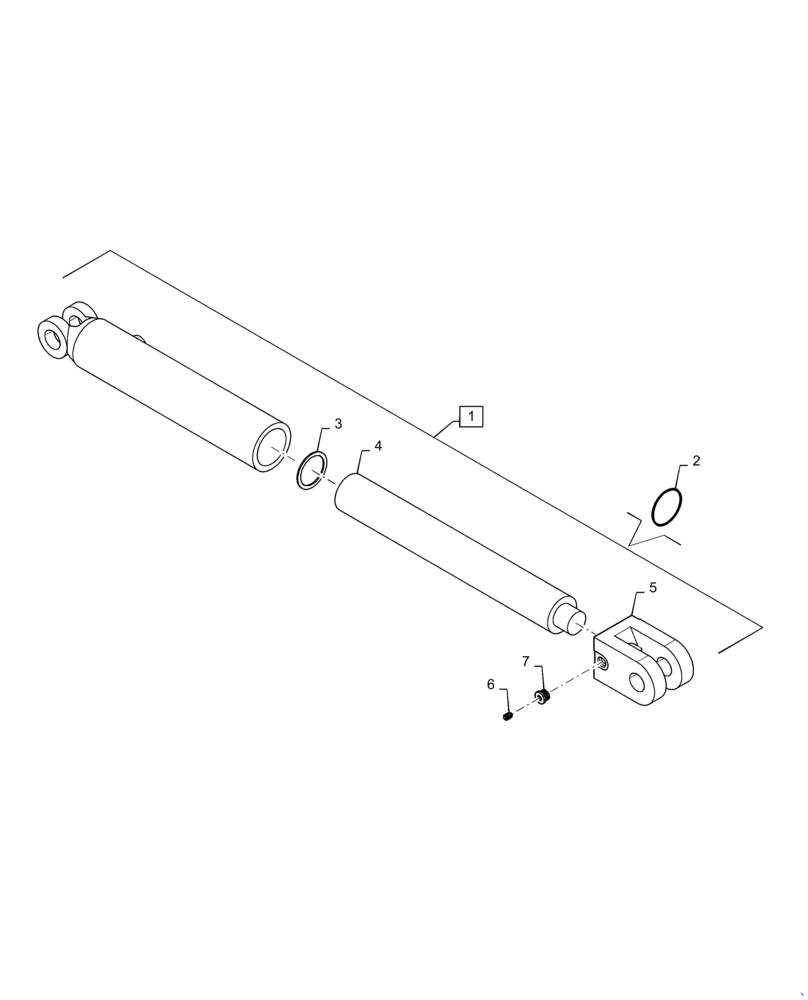

Запчасти Case IH 1225 EARLY RISER (35.100.BI[03]) - HYDRAULIC CYLINDER 2 X 8 MARKER (35) - HYDRAULIC SYSTEMS

1

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2 X 8 RAM INCL 3 - 7

1шт.

2

87430676

SEAL KIT

1шт.

3

87409509

RING

RETAINING

1шт.

4

87409505

PISTON ROD

1шт.

5

87409500

CLEVIS

CYLINDER ROD

1шт.

6

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

1шт.
