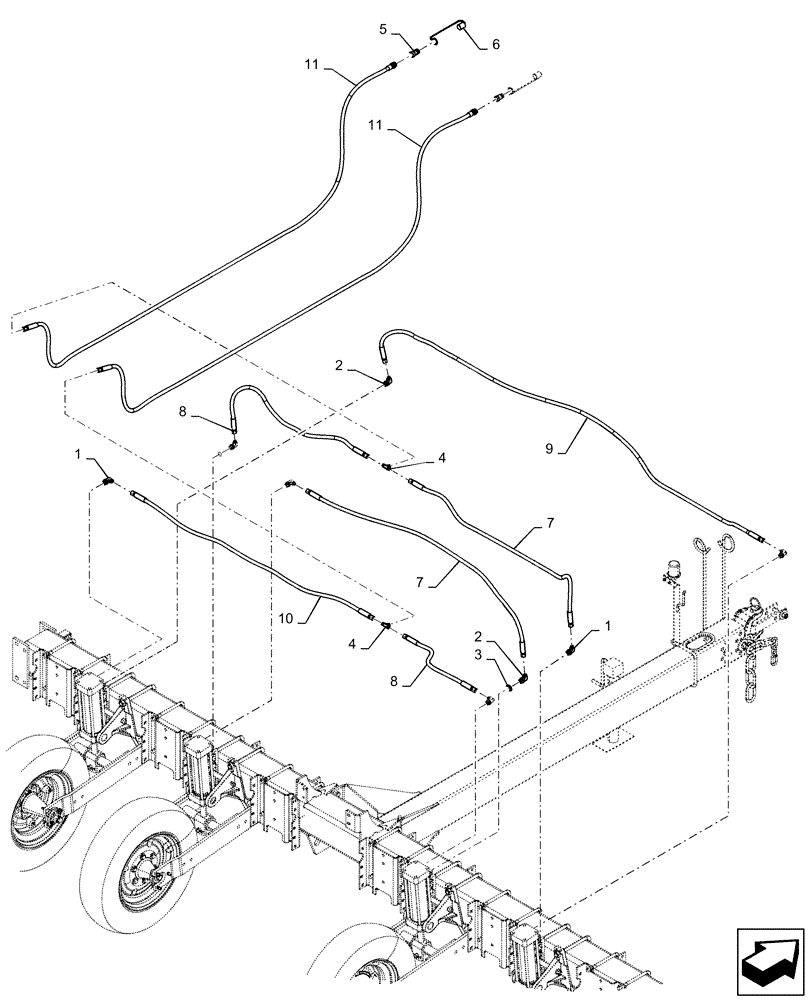

Запчасти Case IH 1225 EARLY RISER (35.100.AH[01]) - LIFT HYDRAULICS FOR 6 ROW (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

6шт.

2

92781C1

RESTRICTOR

Elbow Assy, 1/2 to 3/8

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

5

86592080

QUICK MALE COUPLING

2шт.

6

333721A1

CAP

Quick Coupler Red

2шт.

7

47446547

HOSE

Hyd, 10mm ID x 1780mm Long

2шт.

8

47544481

HYDRAULIC HOSE

10mm ID x 1145mm Long

2шт.

9

47508870

HOSE

Hyd, 10mm ID x 3305mm Long

1шт.

10

47518477

HYDRAULIC HOSE

10mm ID x 2160mm Long

1шт.

11

47544474

HYDRAULIC HOSE

10mm ID x 4700mm Long

2шт.
