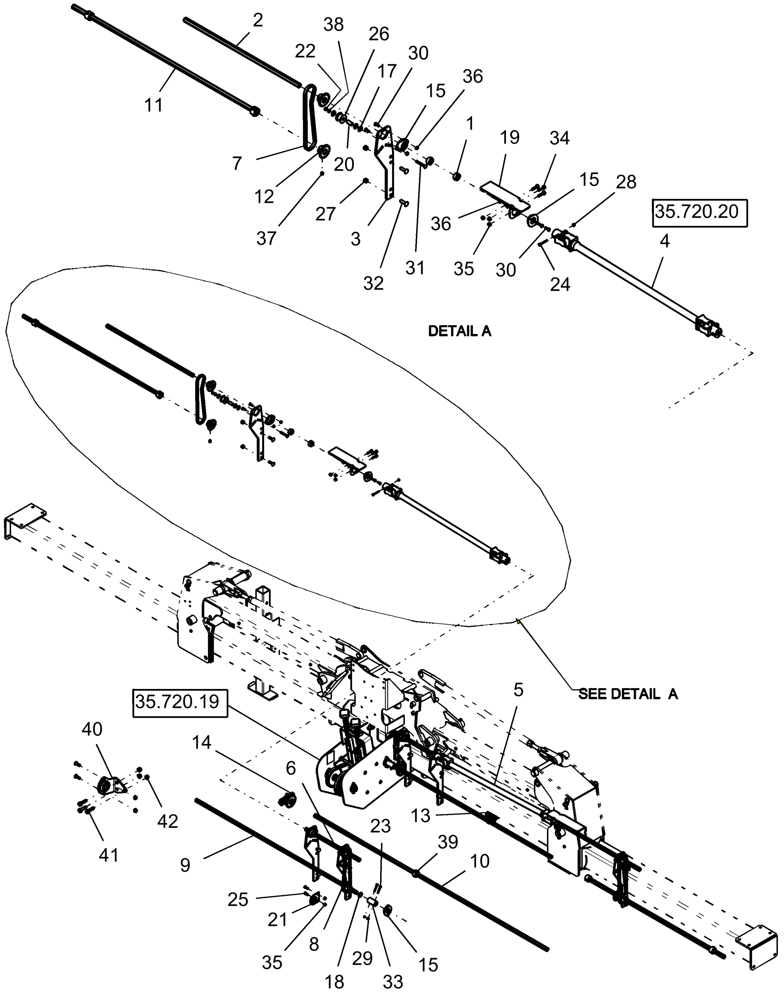

Запчасти Case IH 1220 (35.720.09) - DRIVE SYSTEM - 8R AND 12R MOUNTED STACKER MECH (35) - HYDRAULIC SYSTEMS

1

22224

COLLAR

lock, 7/8" id

8шт.

2

87690805

SHAFT

7/8" hex x 35 7/16"

2шт.

8 Row

1шт.

2

87690807

SHAFT

7/8" hex x 26"

2шт.

12 Row Narrow with 30" Spacing

1шт.

2

87690804

SHAFT

7/8" hex x 31 1/2"

2шт.

12 Row Wide with 40" Spacing

1шт.

2

87690805

SHAFT

7/8" hex x 35 7/16"

2шт.

12 Row Wide with 36" and 38" Spacing

1шт.

3

87648811

BRACKET

driveline support

6шт.

4

87739820

DRIVE SHAFT

telescoping

1шт.

8 Row

1шт.

4

87739825

DRIVE SHAFT

telescoping

1шт.

12 Row Narrow and 12 Row Wide

1шт.

5

87739820

DRIVE SHAFT

telescoping

1шт.

8 Row

1шт.

5

87739825

DRIVE SHAFT

telescoping

1шт.

12 Row Narrow and 12 Row Wide

1шт.

6

87492001

CROSS SHAFT

7/8" x 495 mm

2шт.

8 Row and 12 Row Narrow

1шт.

6

87690804

SHAFT

7/8" hex x 31 1/2"

2шт.

12 Row Wide

1шт.

7

87648812

LINK CHAIN

40-1 x 74 links, Cut From Bulk Stock Part Number 2247

2шт.

8

87648813

LINK CHAIN

40-1 x 68 links

2шт.

9

405406A1

SHAFT

22 mm x 1680 mm

2шт.

8 Row

1шт.

9

402954A1

DRIVE SHAFT

7/8" hex x 2010 mm

2шт.

12 Row Narrow with 30" Spacing

1шт.

9

402955A1

DRIVE SHAFT

7/8" hex x 2660 mm

2шт.

12 Row Wide with 40" Spacing

1шт.

9

402450A1

SHAFT

22 mm x 2434 mm

2шт.

12 Row Wide with 36" Spacing

1шт.

9

240891A1

SHAFT

hex 7/8" x 108.3"

2шт.

12 Row Wide with 38" Spacing

1шт.

10

402450A1

SHAFT

22 mm x 2434 mm

1шт.

11

135382A1

BAR

22 mm x 1441 mm

2шт.

12

437627A1

SPROCKET

#40 18 tooth

8шт.

13

1277925C92

RATCHET

23 tooth LH

1шт.

14

1277926C92

RATCHET

23 tooth RH

1шт.

15

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

14шт.

17

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

18

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

4шт.

19

87675621

BRACKET

driveline, wing LH

1шт.

Shown

1шт.

19

87675620

BRACKET

driveline, wing RH

1шт.

Not Shown

1шт.

20

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

4шт.

21

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

2шт.

22

9628503

NUT,3/8"-16, G5

4шт.

23

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

24

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

4шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

26

1277726C1

ROLLER,48mm OD x 34mm L

idler

4шт.

27

86992215

LOCK NUT,1/2"-13, GC

12шт.

28

280129

NUT,1/4"-20

4шт.

29

280129

NUT,1/4"-20

4шт.

30

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

16шт.

31

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

32

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

12шт.

33

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

seed drive

2шт.

34

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

6шт.

35

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

36

145458

SERRATED NUT,5/16"-18 GR 5 ZND

28шт.

37

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

30шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

39

87461085

SPROCKET

collar locking

15шт.

40

87675622

BRACKET

wing driveline support RH

1шт.

12 Row Wide

1шт.

Shown

1шт.

40

87675623

BRACKET

wing driveline support LH

1шт.

12 Row Wide

1шт.

Not Shown

1шт.

41

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

6шт.

12 Row Wide

1шт.

42

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

12 Row Wide

1шт.
