Запчасти Case IH 1220 (35.720.08) - BASE DRY FERTILIZER DRIVE - 8R RIGID TRAILING (35) - HYDRAULIC SYSTEMS

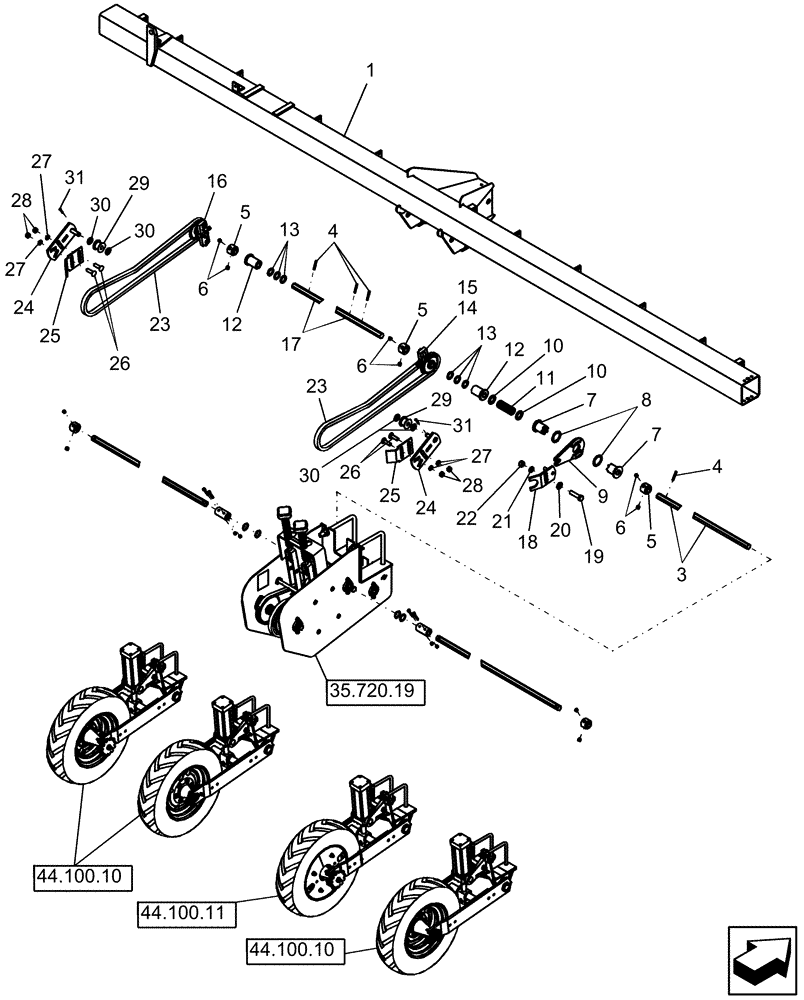

Схема запчастей Case IH 1220 - (35.720.08) - BASE DRY FERTILIZER DRIVE - 8R RIGID TRAILING (35) - HYDRAULIC SYSTEMS
35.720.19
6
10
44.100.10
1
20
44.100.10
27
28
4
31
14
16
25
23
13
25
24
12
30
21
13
6
10
28
31
5
26
27
19
5
4
12
17
7
22
7
3
9
24
30
5
18
44.100.11
29
27
8
6
11
15
23
30
26
29

Артикул

Название

Примечание

Количество

1

87502270

FRAME

8 row narrow trailing

1шт.

3

90844C1

SHAFT

Drive, Hex, 22 (7/8") x 330 mm (13") long

1шт.

4

86624099

PIN,1/4" x 1 3/4", Coiled

4шт.

5

87461085

SPROCKET

collar locking

3шт.

6

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

6шт.

7

87502662

CLUTCH

drive LH

2шт.

8

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

clutch

2шт.

9

87502661

PLATE

clutch throw out

1шт.

10

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

11

87461083

SPRING

clutch

1шт.

12

90335C2

BUSHING

drive shaft

2шт.

13

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

14

1277925C92

RATCHET

23 tooth LH

1шт.

15

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

2шт.

Not Shown

1шт.

16

1277926C92

RATCHET

23 tooth RH

1шт.

17

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

2шт.

Not Shown

1шт.

17

1986178C1

SHAFT

Drive, Hex, 22 (7/8") x 1676 mm (66") Long

1шт.

18

87461084

BRACKET

cast clutch throw out

1шт.

19

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

20

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

21

12034871

WASHER

5/8"

1шт.

22

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

23

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

2шт.

23

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

23

1277928C91

LINK

connecting #2050

1шт.

24

87461086

PLATE

idler

2шт.

25

87461087

SCRAPER

chain plate

2шт.

26

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

28

280431

NUT,1/2"-13, G5

4шт.

29

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

30

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

31

394818

COTTER PIN,M5 x 25

2шт.

Выбрано товаров: 35
