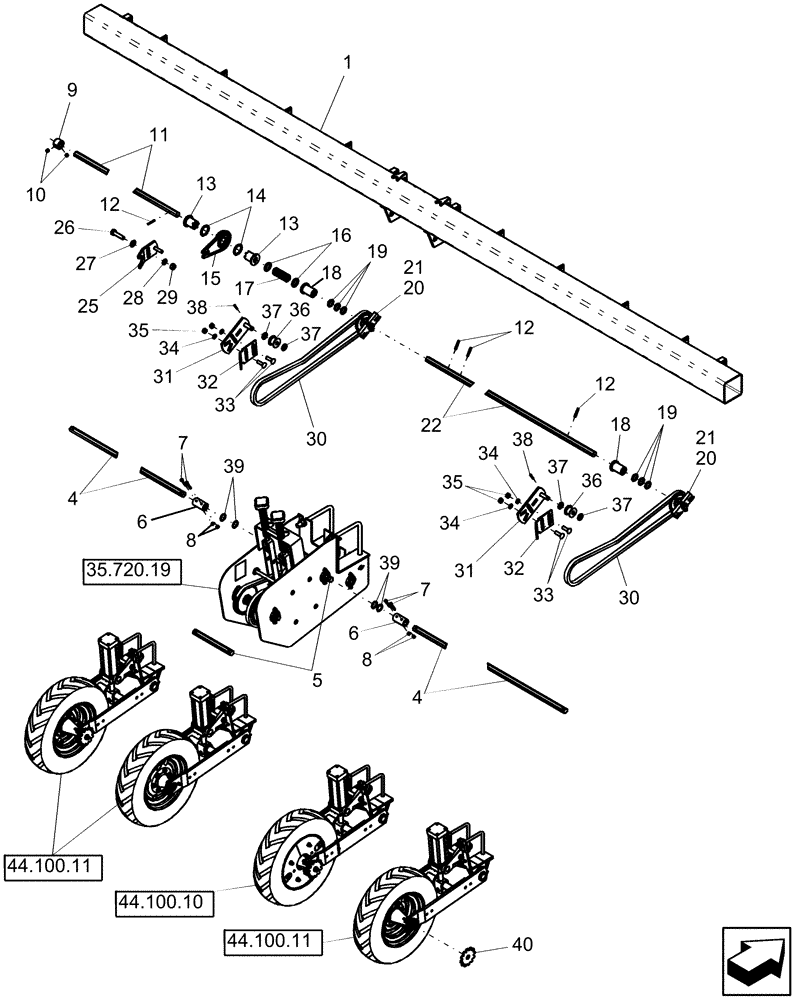

Запчасти Case IH 1220 (35.720.07) - BASE DRIVE SYSTEM - 8R RIGID TRAILING MECH (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
87502270
FRAME
8 row narrow trailing
1шт.
4
402446A1
SHAFT
hex, 7/8" x 2685 mm
2шт.
5
402451A1
SHAFT
hex, 7/8" x 13 15/16" with 2 holes
1шт.
6
400583A1
COUPLING,22.48mm ID x 38.1mm OD x 70mm L
seed drive
2шт.
7
87404
BOLT,Hex, 1/4" - 20 x 2", Gr 5
4шт.
8
280129
NUT,1/4"-20
4шт.
9
87461085
SPROCKET
collar locking
1шт.
10
86624123
SET SCREW,Hex Skt, 1/2" - 13 x 1/2"
2шт.
11
87690804
SHAFT
7/8" hex x 31 1/2"
1шт.
12
86624099
PIN,1/4" x 1 3/4", Coiled
4шт.
13
1264314C1
CLUTCH
drive RH
2шт.
14
1267994C2
THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk
clutch
2шт.
15
87502661
PLATE
clutch throw out
1шт.
16
86624172
WASHER,1.03" ID x 1.75" OD x 0.12" Thk
2шт.
17
87461083
SPRING
clutch
1шт.
18
90335C2
BUSHING
drive shaft
2шт.
19
86624170
WASHER,1.03" ID x 1.5" OD x 0.12" Thk
6шт.
20
1277926C92
RATCHET
23 tooth RH
2шт.
21
86624113
SET SCREW,Sq Hd, 1/2" - 13 x 3/4"
2шт.
Not Shown
1шт.
22
96047C2
SHAFT
hex 7/8" x 1939 mm
1шт.
25
87461084
BRACKET
cast clutch throw out
1шт.
27
87365
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
1шт.
29
280374
NUT,Hex, 5/8" - 11, Gr 5
1шт.
30
1277740C91
CHAIN (AG)
A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link
2шт.
30
569089R91
CHAIN (AG),10' L, 1.0" Pitch
#2050 - 10' d/p roller
1шт.
30
1277928C91
LINK
connecting #2050
1шт.
31
87461086
PLATE
idler
2шт.
32
87461087
SCRAPER
chain plate
2шт.
33
280185
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
4шт.
34
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
35
280431
NUT,1/2"-13, G5
4шт.
36
1277726C1
ROLLER,48mm OD x 34mm L
idler
2шт.
37
87365
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
4шт.
38
394818
COTTER PIN,M5 x 25
2шт.
39
86624168
WASHER,1.03" ID x 1.5" OD x 0.03" Thk
1шт.
40
1277737C1
SPROCKET
12 tooth
4шт.
Выбрано товаров: 39
