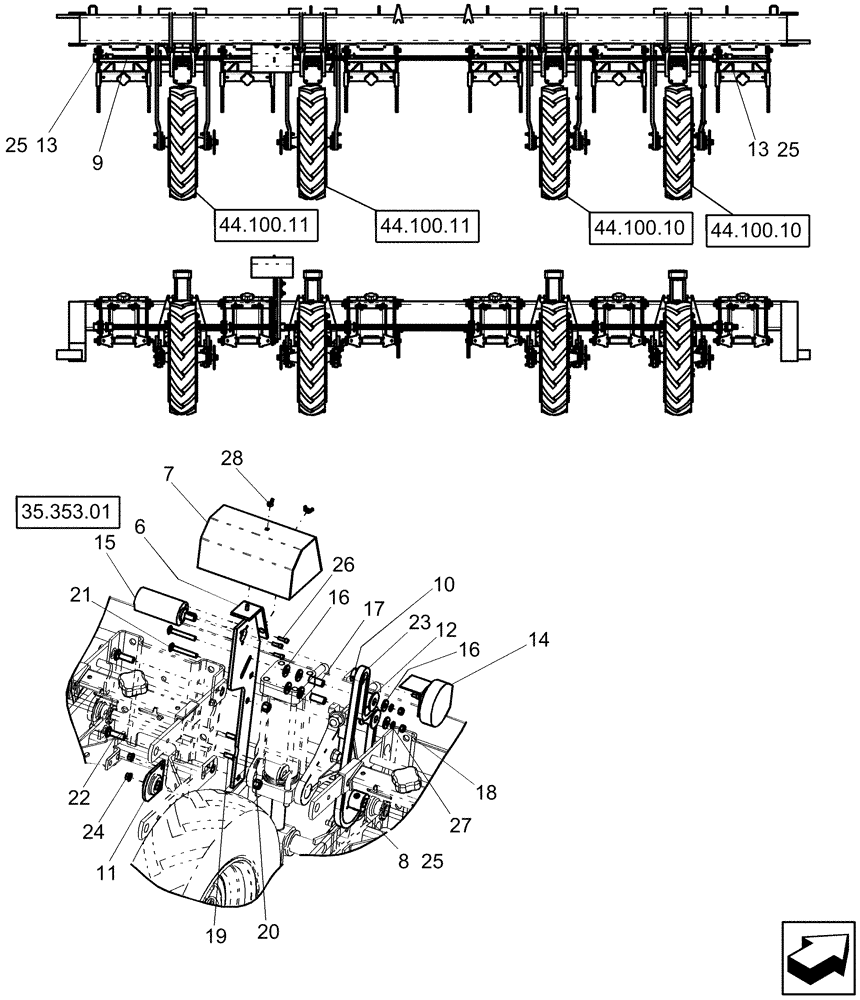

Запчасти Case IH 1220 (35.720.05) - DRIVE SYSTEM - 6R AND 8R RIGID TRAILING VR (35) - HYDRAULIC SYSTEMS

6

87434287

BRACKET

mount, VR motor

1шт.

7

87433232

SHIELD

VR motor

1шт.

8

353037A1

SPROCKET

34 tooth

1шт.

9

132423A1

BAR

drive shaft, hex, 22 (7/8") x 3962 mm (156") long

1шт.

6 Row

1шт.

9

132421A1

BAR

shaft, primary drive 8 row trailing

1шт.

8 Row

1шт.

10

232893A1

SPROCKET

40 x 10

1шт.

11

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

1шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

13

87461085

SPROCKET

collar locking

4шт.

14

296164A2

SENSOR

application rate

1шт.

15

293288A1

MOTOR

31.6 cm3 (1.93 in3) displacement seed drive

1шт.

293288A1R

REMAN-HYD MOTOR

1220 Rigid Trling.Planter

1шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

16

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

6шт.

17

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

2шт.

18

9628503

NUT,3/8"-16, G5

2шт.

19

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

86992215

LOCK NUT,1/2"-13, GC

2шт.

21

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

2шт.

22

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

2шт.

23

436984A1

CHAIN (AG)

roller, 40-1, 84 links with 1 connector link

1шт.

Use 83 links from 1790D bulk chain, plus (1) 241-1314 connecting link

1шт.

23

1790D

CHAIN (AG)

#40 bulk, 10' roll

1шт.

23

25195

LINK,12.7mm Pitch

roller conn 40-1

1шт.

24

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

25

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

10шт.

26

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

3шт.

27

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

28

86627130

WING NUT,1/4"-20

2шт.
