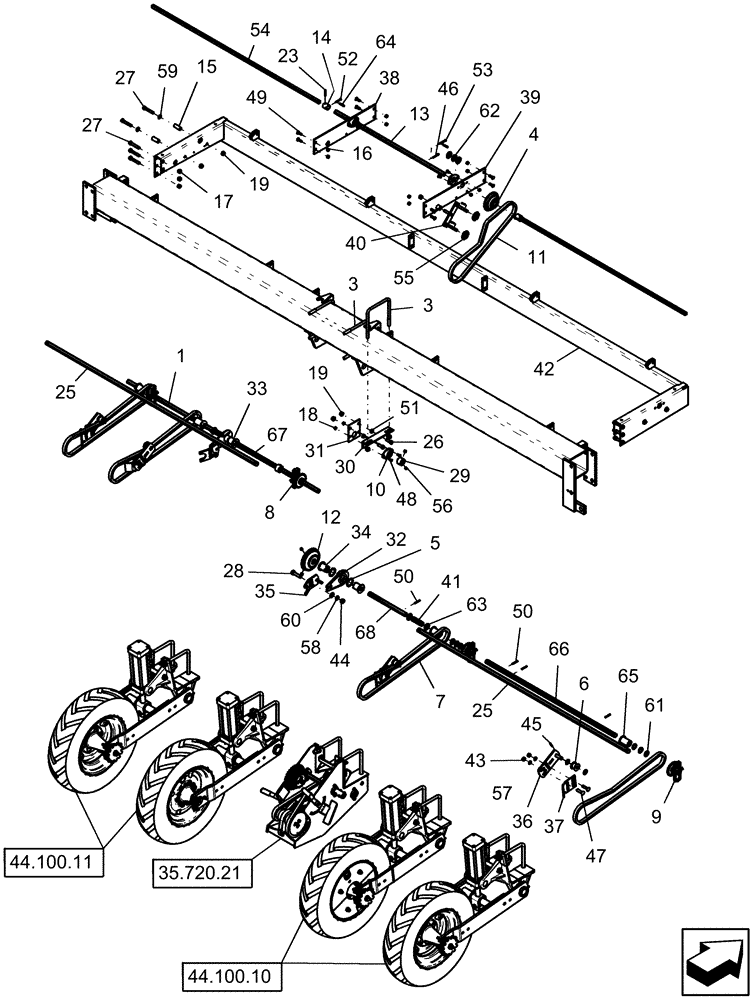

Запчасти Case IH 1220 (35.720.04) - DRIVE SYSTEM - 6R RIGID TRAILING WITH DRY FERTILIZER (35) - HYDRAULIC SYSTEMS

1

84158068

SHAFT

hex, 22 mm x 916 mm fl

1шт.

3

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

3шт.

4

1267911C1

SPROCKET

assembly, shaft 16-24-30T

1шт.

5

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

clutch

4шт.

5

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

4шт.

5

1277928C91

LINK

connecting #2050

4шт.

6

1277726C1

ROLLER,48mm OD x 34mm L

idler

4шт.

7

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

4шт.

8

1277925C92

RATCHET

23 tooth LH

2шт.

9

1277926C92

RATCHET

23 tooth RH

3шт.

10

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

3шт.

11

137465C92

CHAIN (AG)

drive, use 57 links from 569088R91 bulk chain, plus (1) 1277927C91 connecting link

1шт.

11

569088R91

CHAIN (AG)

#2040 - 10' d/p roller

1шт.

11

1277927C91

LINK

connecting

1шт.

12

141063C2

SPROCKET

assembly, drive clutch

1шт.

13

141770C2

BAR

Drive, Hex, 22 mm (7/8") x 990 mm (39") long

1шт.

14

141771C2

COUPLING,27.05mm ID x 33.4mm OD x 36mm L

1 7/16" (36 mm) long

2шт.

15

1976487C2

SPACER

27/32" x 63/64" x 2"

4шт.

16

88902

NUT,3/8"-16

8шт.

17

86992215

LOCK NUT,1/2"-13, GC

7шт.

18

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

19

86512371

SERRATED NUT,Flg, USR, 1/2"-13

6шт.

23

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

25

405407A1

SHAFT

hex 7/8" x 1920 mm

2шт.

26

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

27

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

10шт.

28

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

2шт.

29

87461085

SPROCKET

collar locking

2шт.

30

87461088

SUPPORT

angle bearing

1шт.

31

87461090

PLATE

bearing support

1шт.

32

87502661

PLATE

clutch throw out

2шт.

33

1264313C1

CLUTCH

drive LH

2шт.

34

1264314C1

CLUTCH

drive RH

2шт.

35

87461084

BRACKET

cast clutch throw out

2шт.

36

87461086

PLATE

idler

4шт.

37

256695A1

SCRAPER

chain

4шт.

38

141096C1

BAR

LH

1шт.

39

141108C1

SUPPORT

RH

1шт.

40

87461091

ARM

chain tightener

1шт.

41

1264302C1

SPRING

clutch .148 wire x 1 3/8" od x 4.9" long closed and ground

2шт.

42

141162C2

FUNNEL

FRAME hopper

1шт.

43

280431

NUT,1/2"-13, G5

8шт.

44

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

45

87397

COTTER PIN,3/16" OD x 1" L

6шт.

46

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

47

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

8шт.

48

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

49

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

8шт.

50

438-31628

PIN,1/4" x 1 3/4", Coiled

8шт.

51

438332A1

SPACER,1/2" X-Strng Pipe x 3/8"

2шт.

52

86624075

HEADED PIN,6.35mm OD x 44.45mm L

2шт.

53

86624077

HEADED PIN,6.35mm OD x 50.8mm L

1шт.

54

442195A1

BAR

shaft, auger drive

2шт.

55

472344R3

SPROCKET

idler

2шт.

56

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

6шт.

57

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

58

12034871

WASHER

5/8"

2шт.

59

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

60

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

10шт.

61

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

12шт.

62

86624171

WASHER,1.03" ID x 1.75" OD x 0.06" Thk

4шт.

63

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

6шт.

64

86624096

COTTER PIN,Int, 3/16 x .080"

3шт.

65

90335C2

BUSHING

drive shaft

4шт.

66

90558C2

BAR

primary input

1шт.

67

87690804

SHAFT

7/8" hex x 31 1/2"

1шт.

68

90844C1

SHAFT

Drive, Hex, 22 (7/8") x 330 mm (13") long

1шт.
