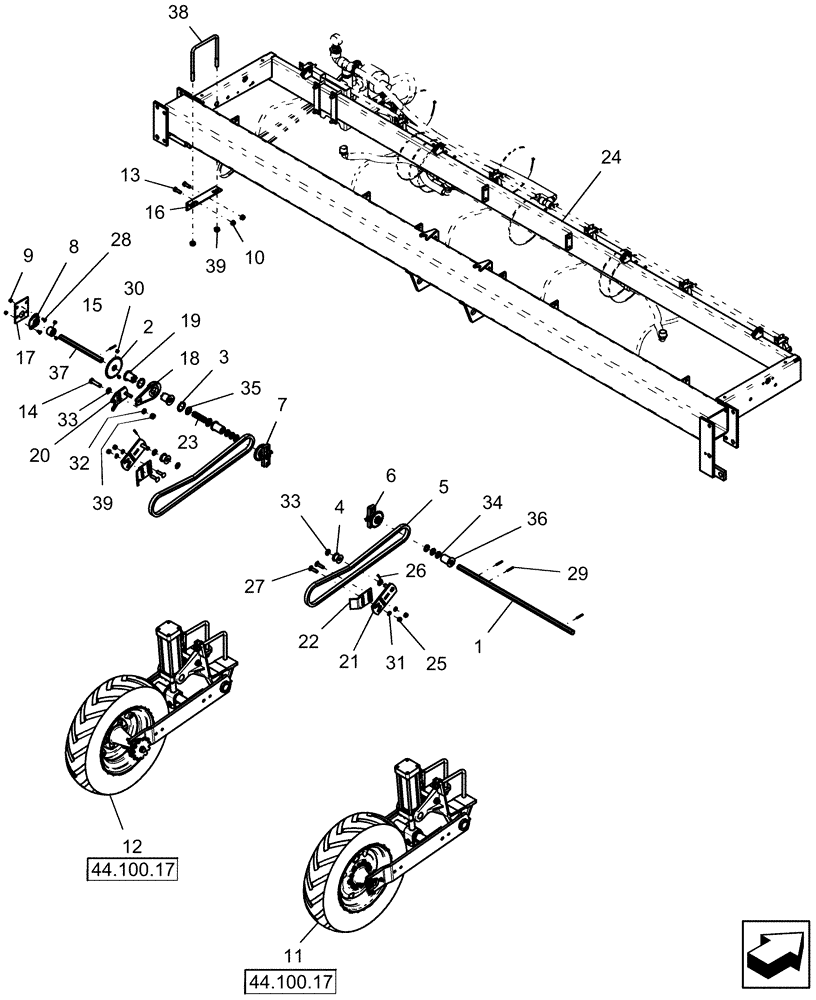

Запчасти Case IH 1220 (35.720.03) - DRIVE SYSTEM - 6R RIGID TRAILING WITH LIQUID FERTILIZER (35) - HYDRAULIC SYSTEMS

1

84158068

SHAFT

hex, 22 mm x 916 mm fl

1шт.

2

1254152C2

SPROCKET

assembly, 30 tooth driver

1шт.

3

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

clutch

2шт.

4

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

5

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

2шт.

5

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

2шт.

5

1277928C91

LINK

connecting #2050

2шт.

6

1277925C92

RATCHET

23 tooth LH

1шт.

7

1277926C92

RATCHET

23 tooth RH

1шт.

8

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

1шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

10

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

11

191012A2

FRAME

assembly, drive wheel

1шт.

See figure 44.100.17

1шт.

12

393247A1

PACKAGE

drive with master cylinder RH

1шт.

See figure 44.100.17

1шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

14

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

15

87461085

SPROCKET

collar locking

1шт.

16

87461088

SUPPORT

angle bearing

1шт.

17

87461090

PLATE

bearing support

1шт.

18

87502661

PLATE

clutch throw out

1шт.

19

1264314C1

CLUTCH

drive RH

2шт.

20

87461084

BRACKET

cast clutch throw out

1шт.

21

87461086

PLATE

idler

2шт.

22

256695A1

SCRAPER

chain

2шт.

23

1264302C1

SPRING

clutch .148 wire x 1 3/8" od x 4.9" long closed and ground

1шт.

24

141162C2

FUNNEL

FRAME hopper

1шт.

25

280431

NUT,1/2"-13, G5

4шт.

26

87397

COTTER PIN,3/16" OD x 1" L

2шт.

27

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

28

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

29

438-31628

PIN,1/4" x 1 3/4", Coiled

4шт.

30

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

32

12034871

WASHER

5/8"

1шт.

33

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

34

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

35

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

36

90335C2

BUSHING

drive shaft

2шт.

37

90844C1

SHAFT

Drive, Hex, 22 (7/8") x 330 mm (13") long

1шт.

38

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

39

280374

NUT,Hex, 5/8" - 11, Gr 5

3шт.
