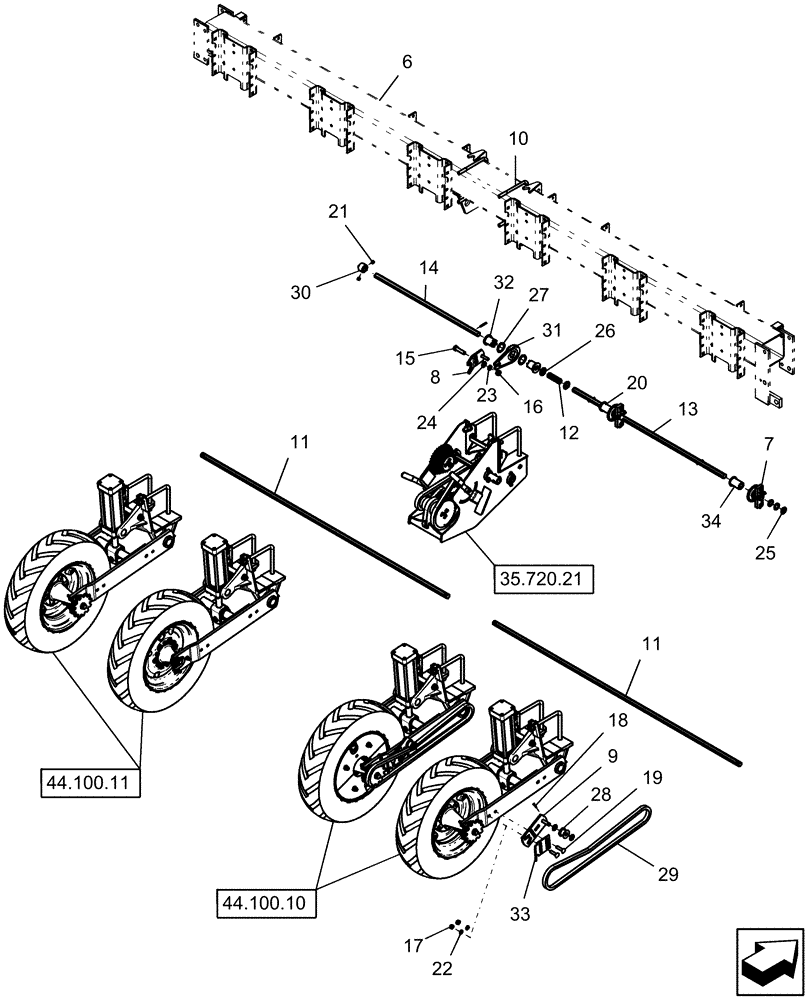

Запчасти Case IH 1220 (35.720.02) - DRIVE SYSTEM - 6R RIGID TRAILING MECH (35) - HYDRAULIC SYSTEMS

6

87501698

FRAME

6 row narrow, trailing planter

1шт.

7

1277926C92

RATCHET

23 tooth RH

2шт.

8

87461084

BRACKET

cast clutch throw out

1шт.

9

87461086

PLATE

idler

2шт.

10

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

11

405407A1

SHAFT

hex 7/8" x 1920 mm

2шт.

12

87461083

SPRING

clutch

1шт.

13

90558C2

BAR

primary input

1шт.

14

87690804

SHAFT

7/8" hex x 31 1/2"

1шт.

15

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

16

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

17

280431

NUT,1/2"-13, G5

4шт.

18

87397

COTTER PIN,3/16" OD x 1" L

2шт.

19

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

4шт.

20

438-31628

PIN,1/4" x 1 3/4", Coiled

4шт.

21

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

23

12034871

WASHER

5/8"

1шт.

24

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

5шт.

25

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

6шт.

26

86624172

WASHER,1.03" ID x 1.75" OD x 0.12" Thk

2шт.

27

1267994C2

THRUST WASHER,42.06mm ID x 57.15mm OD x 2.7mm Thk

clutch

2шт.

28

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

29

1277740C91

CHAIN (AG)

A2050 main drive (Trail), use 55 links from 569089R91 bulk chain plus 1-1277928C91 connecting link

2шт.

29

569089R91

CHAIN (AG),10' L, 1.0" Pitch

#2050 - 10' d/p roller

1шт.

29

1277928C91

LINK

connecting #2050

1шт.

30

87461085

SPROCKET

collar locking

1шт.

31

87502661

PLATE

clutch throw out

1шт.

32

1264314C1

CLUTCH

drive RH

2шт.

33

256695A1

SCRAPER

chain

2шт.

34

90335C2

BUSHING

drive shaft

2шт.

34

22224

COLLAR

1шт.

34

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

2шт.
