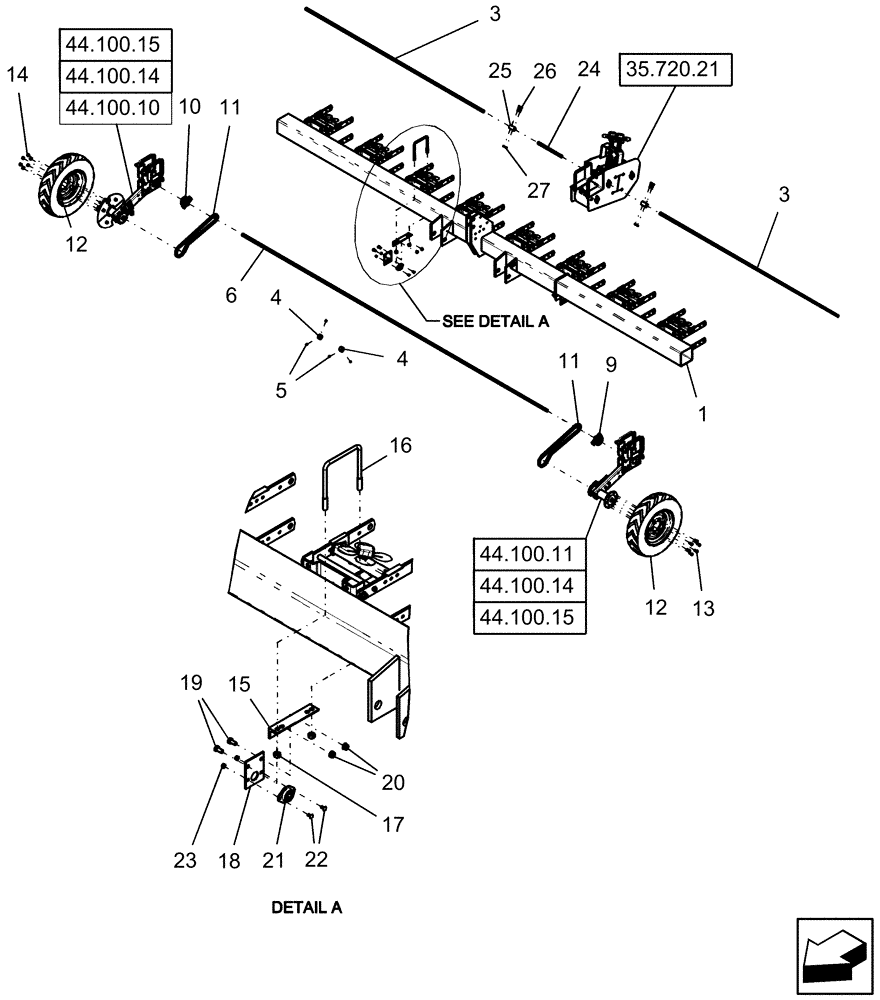

Запчасти Case IH 1220 (35.720.01) - DRIVE SYSTEM - 8R RIGID MOUNTED AND RIGID TRAILING, 6R, 3 SHAFT TRANSMISSION (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
247230A1
FRAME
main, includes decal
1шт.
8 Row Narrow
1шт.
6 Row Wide
1шт.
1
231066A1
FRAME
main, includes decal
1шт.
8 Row Wide
1шт.
1
87565215
FRAME
6 row narrow mounted
1шт.
6 Row Narrow
1шт.
3
402446A1
SHAFT
hex, 7/8" x 2685 mm
2шт.
3
402951A1
DRIVE SHAFT
7/8" hex x 3550 mm
2шт.
8 Row Wide
1шт.
3
87548227
SHAFT
hex input drive, 6 row narrow, rigid mounted
2шт.
6 Row Narrow
1шт.
4
87461085
SPROCKET
collar locking
2шт.
5
86624123
SET SCREW,Hex Skt, 1/2" - 13 x 1/2"
4шт.
6
128984A1
SHAFT
drive, hex 22 mm (7/8") x 4597 mm (181") long
1шт.
8 Row Narrow
1шт.
6
278931A1
SHAFT
drive, hex, 22 mm (7/8") x 6014 mm (236 3/4") long
1шт.
8 Row Wide
1шт.
6
87549482
SHAFT
7/8" hex, meter drive, 6 row narrow rigid mounted
1шт.
6 Row Narrow
1шт.
9
1277926C92
RATCHET
23 tooth RH
1шт.
10
1277925C92
RATCHET
23 tooth LH
1шт.
11
1277739C91
CHAIN (AG)
primary wheel drive, no. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link
2шт.
11
569089R91
CHAIN (AG),10' L, 1.0" Pitch
#2050 - 10' d/p roller
1шт.
11
1277928C91
LINK
connecting #2050
1шт.
12
349203A1
WHEEL
15 X 5 6H with valve guard
2шт.
13
198056
WHEEL BOLT,1/2" - 20 x 1.031"
6шт.
14
F23214
WHEEL NUT
hub wheel - h517 & h617
6шт.
15
87461088
SUPPORT
angle bearing
2шт.
16
1250813C1
U-BOLT
us 5/8"-11 x 7" x 8 1/4", G5, 2" thread
2шт.
18
87461090
PLATE
bearing support
2шт.
19
87909
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
20
86512371
SERRATED NUT,Flg, USR, 1/2"-13
4шт.
21
134158C92
BALL BEARING,22.5mm ID
7/8 hex flange
2шт.
22
280497
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd
4шт.
23
145458
SERRATED NUT,5/16"-18 GR 5 ZND
4шт.
24
402451A1
SHAFT
hex, 7/8" x 13 15/16" with 2 holes
1шт.
25
400583A1
COUPLING,22.48mm ID x 38.1mm OD x 70mm L
seed drive
2шт.
26
87404
BOLT,Hex, 1/4" - 20 x 2", Gr 5
4шт.
27
280129
NUT,1/4"-20
4шт.
Выбрано товаров: 41
