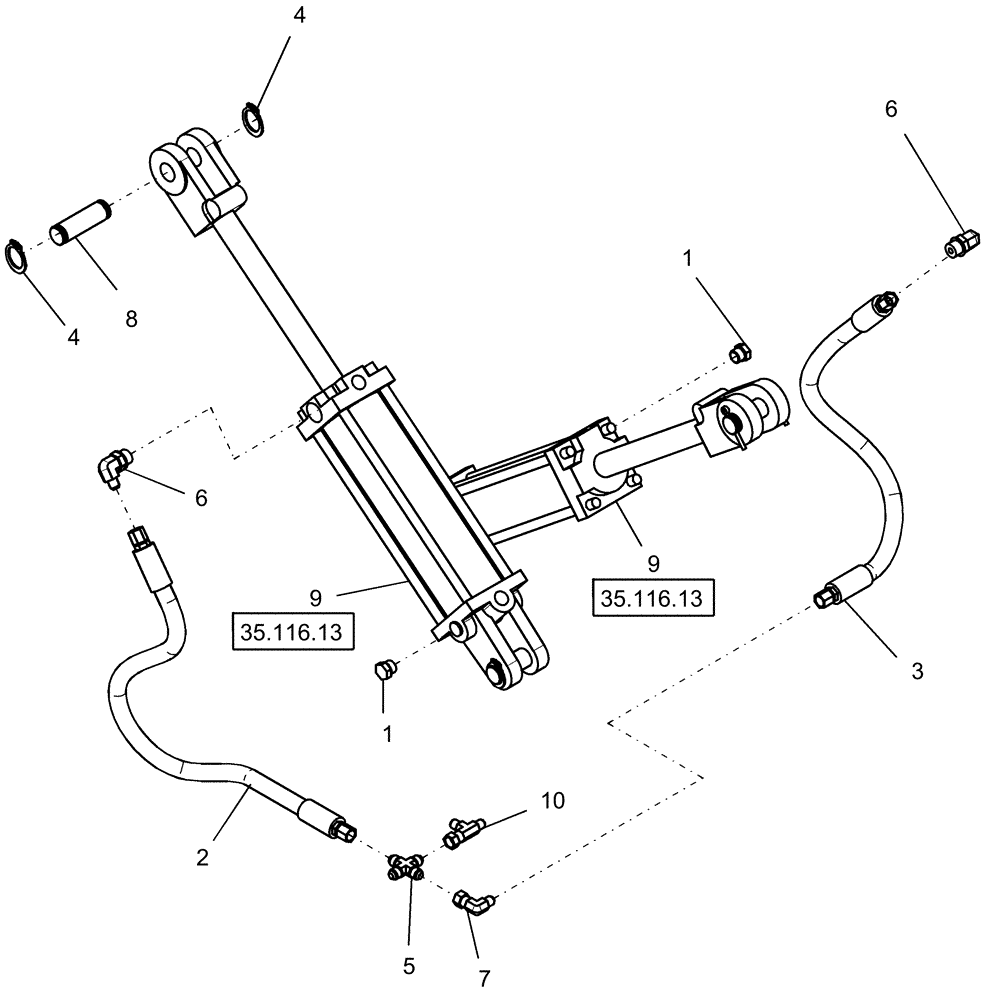

Запчасти Case IH 1220 (35.580.02) - HYDRAULIC CIRCUIT - GULL WING ATTACHMENT, WITH ASSIST WHEELS, 16 ROW MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

1

9479

PLUG

fitting aluminum breather 1/2" mb c/w o-ring

2шт.

2

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

3

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

4

87019495

SNAP RING,#98, Ext

8шт.

5

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

6

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

7

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

8

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

4шт.

9

87660741

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3" x 10" 3000 psi, no pins, single acting

2шт.

10

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.
