Запчасти Case IH 1220 (35.220.01) - HYDRAULIC PUMP KIT ATTACHMENT, 1000 RPM (HIGH DISPLACEMENT) PUMP, 6 & 8 ROW RIGID TRAILING (35) - HYDRAULIC SYSTEMS

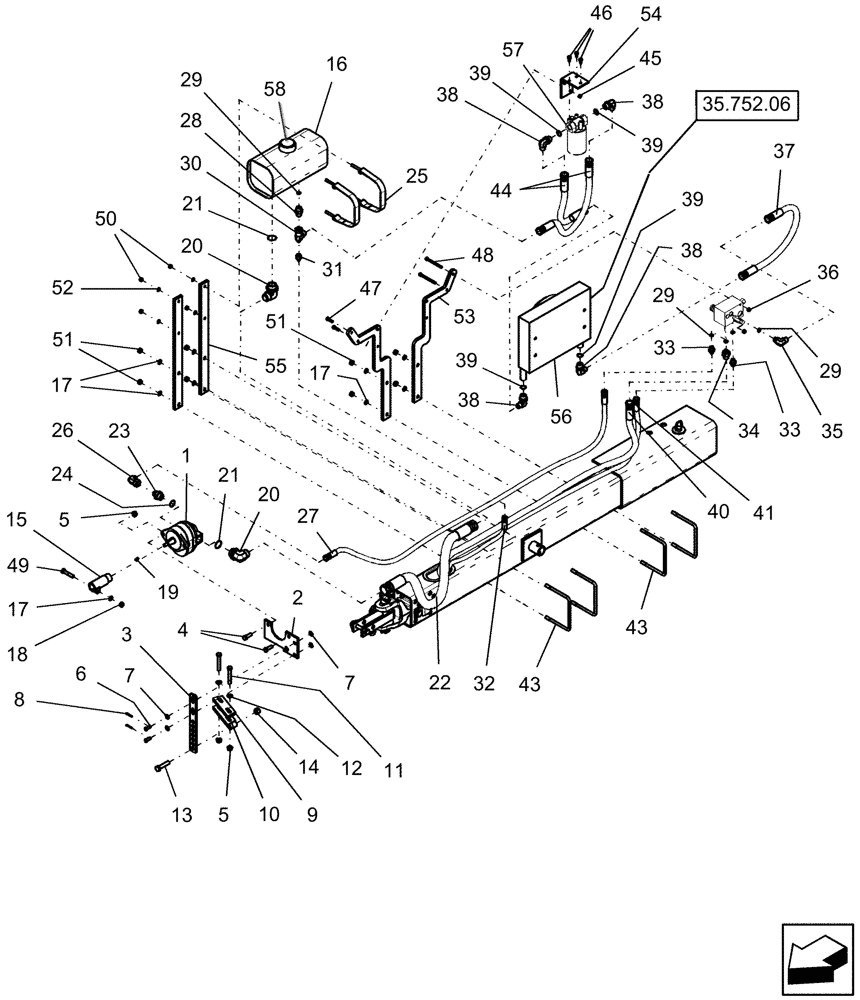

Схема запчастей Case IH 1220 - (35.220.01) - HYDRAULIC PUMP KIT ATTACHMENT, 1000 RPM (HIGH DISPLACEMENT) PUMP, 6 & 8 ROW RIGID TRAILING (35) - HYDRAULIC SYSTEMS
35.752.06
38
22
16
25
51
30
43
38
29
56
14
21
38
36
33
41
2
51
39
13
46
58
50
20
10
45
38
17
29
15
40
55
7
26
27
34
39
39
1
5
17
47
11
39
48
4
43
19
32
20
21
52
17
9
8
23
12
6
7
57
54
37
28
31
49
24
29
18
3
5
33
53
44
35

Артикул

Название

Примечание

Количество

1

398126A1

HYDRAULIC PUMP,63.6 CC

63.6 cm3 (3.88 in3) displacement

1шт.

398126A1R

REMAN-HYD PUMP

1220 (7/08-)

1шт.

398126A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

Not Shown

1шт.

1

D149152

PACKAGE, REPAIR

minor

1шт.

Not Shown

1шт.

2

56773C1

PLATE

pump mount

1шт.

3

437631A1

BRACKET

adjusting

1шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

6

86624068

HEADED PIN,7/16" x 1 1/4", G2

2шт.

7

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

8

394818

COTTER PIN,M5 x 25

2шт.

9

437632A1

STRAP

2шт.

10

437633A1

STRAP

assembly

1шт.

11

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

12

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

13

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

1шт.

14

85700693

NUT,5/8" - 11, Gr C

1шт.

15

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

1 3/8"

1шт.

16

115869A1

RESERVOIR, HYDRAULIC

3 gallon

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

9шт.

18

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

19

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

20

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

21

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

22

86990812

HYDRAULIC HOSE,31.7mm ID x 1168.4mm L, SAE 100R4

1 1/4" x 46" fl

1шт.

23

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

24

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

116093A1

STRAP

oil reservoir tank

2шт.

26

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

27

196584C2

HYDRAULIC HOSE

1/2" x 95" fl

1шт.

28

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

29

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

30

86624129

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

31

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

32

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8" x 225" coiled

1шт.

33

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

34

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

35

100333

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

1шт.

36

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

37

345691A1

HYDRAULIC HOSE

3/4" x 36 (915 mm) fl

1шт.

38

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

4шт.

Includes O-ring

1шт.

39

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

40

135368A1

HYDRAULIC HOSE

3/4" x 200" (5080 mm) fl

1шт.

41

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

1шт.

43

86990134

U-BOLT

us 1/2"-13 x 7 1/8" wide x 6 1/4" deep, G5, 1 1/4" thread

4шт.

44

275750A1

HOSE

3/4" x 21" fl

2шт.

45

230-4245

LOCK NUT,5/16"-18, GA

2шт.

46

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

47

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

48

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

49

86622971

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

1шт.

50

9628503

NUT,3/8"-16, G5

4шт.

51

280431

NUT,1/2"-13, G5

8шт.

52

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

53

86989579

BRACKET

cooler mount

2шт.

54

86989581

BRACKET

oil filter mount

1шт.

55

86989583

BRACKET

reservoir mount

2шт.

56

409312A1

OIL COOLER

2 pass with electric fan

1шт.

57

87404509

FILTER ASSY

includes head

1шт.

57

87404510

FILTER

spin on element

1шт.

58

129575A1

CAP

Hyd tank

1шт.

Выбрано товаров: 65
