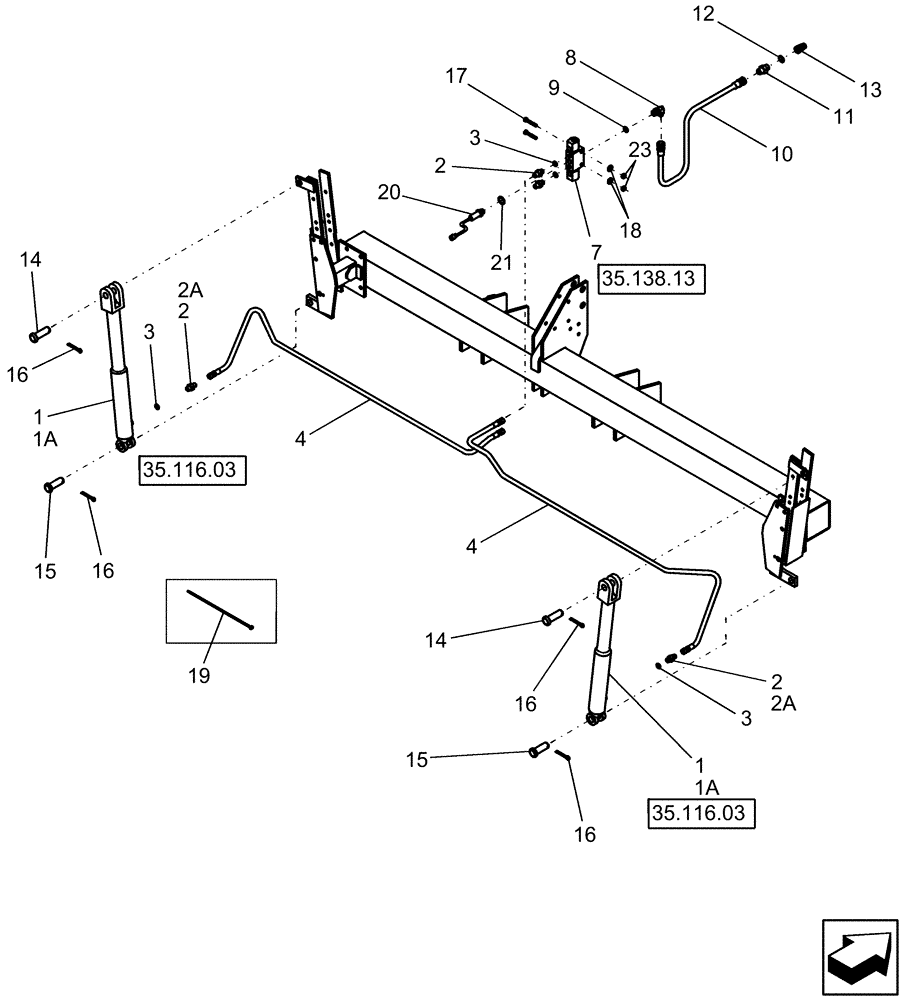

Запчасти Case IH 1220 (35.138.04) - HYDRAULIC SYSTEM - ROW MARKER, RIGID MOUNTED FRAMES, 8 ROW NARROW, 8 ROW WIDE, 6 ROW WIDE (35) - HYDRAULIC SYSTEMS

1

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8"

2шт.

1a

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

2" x 8"

2шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

4шт.

2a

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

139655C2

HYDRAULIC HOSE

3/8" x 155" fl

2шт.

8 Row Narrow

1шт.

6 Row Wide

1шт.

4

129759C2

HYDRAULIC HOSE

3/8" x 180" fl

2шт.

8 Row Wide

1шт.

7

149988C92

VALVE

assembly

1шт.

8

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

1шт.

11

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

1шт.

14

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

2шт.

15

86624100

HEADED PIN,1" x 3", G2

2шт.

16

80753

COTTER PIN,1/4" x 1 1/2"

4шт.

17

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

19

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

20

1547188C1

SWITCH

pressive inv

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

86624165

WASHER,0.91" ID x 1.25" OD x 0.06" Thk

2шт.

Not Shown

1шт.

23

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.
