Запчасти Case IH 1220 (35.138.03) - VALVE MOUNTING - 16 ROW MOUNTED STACKER VARIABLE RATE DRIVE (35) - HYDRAULIC SYSTEMS

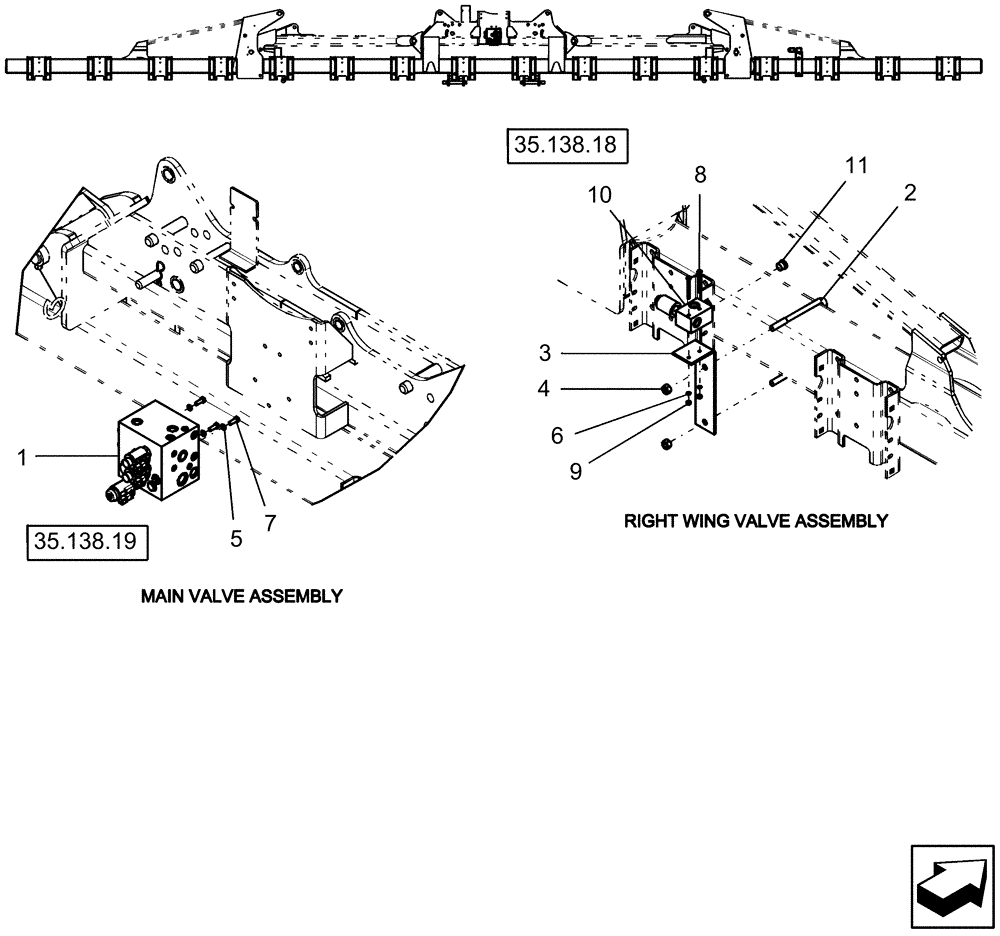

Схема запчастей Case IH 1220 - (35.138.03) - VALVE MOUNTING - 16 ROW MOUNTED STACKER VARIABLE RATE DRIVE (35) - HYDRAULIC SYSTEMS
10
1
8
4
3
5
6
35.138.19
35.138.18
7
2
9
11

Артикул

Название

Примечание

Количество

1

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

2

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

1шт.

3

87582352

BRACKET

mount, auxiliary valve

1шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

6

80682

LOCK WASHER,1/4"

2шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

8

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

2шт.

9

86517505

NUT,1/4"-20, G5

2шт.

10

226734A4

VALVE

proportional flow control

1шт.

11

9625178

PLUG,9/16" - 18 ORB

1шт.

Выбрано товаров: 11
