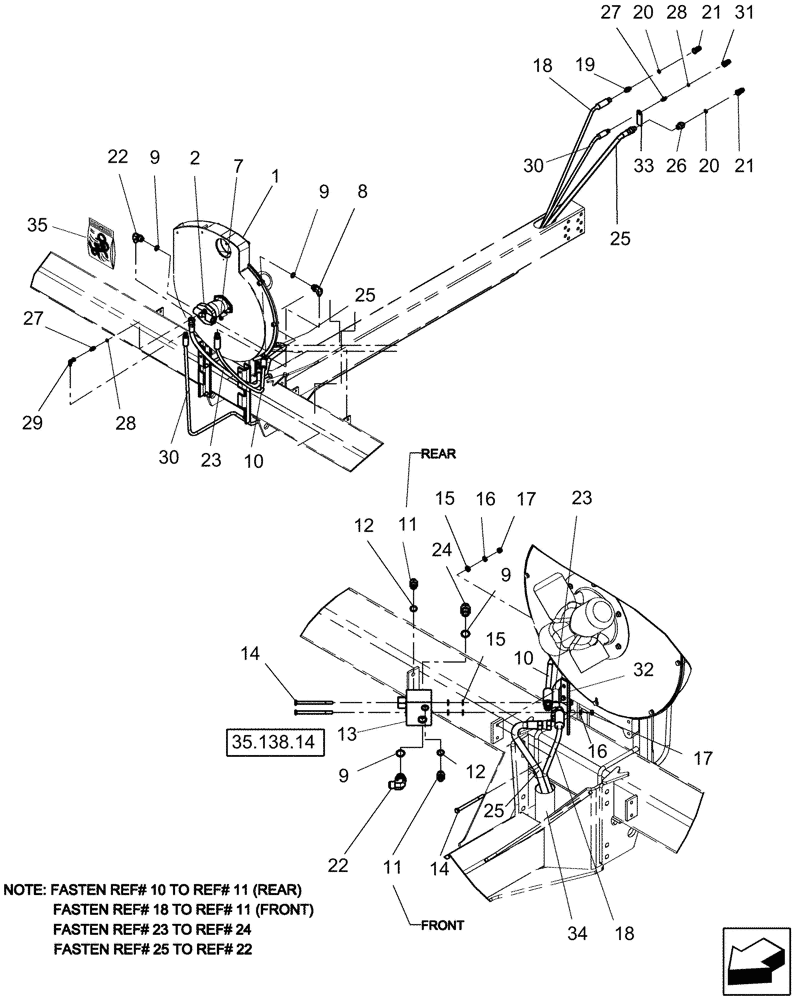

Запчасти Case IH 1220 (35.138.02) - FAN MOTOR HYDRAULICS, RIGID TRAILING (MECH DRIVE) (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

fan assembly - vacuum

1шт.

2

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

2

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

2

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

3

55555C1

KEY

1/4" square

1шт.

Not Shown

1шт.

4

D63349

SEAL

motor shaft

1шт.

Not Shown

1шт.

5

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

Not Shown

1шт.

6

271429

SNAP RING,1.625", Int, #162

1шт.

Not Shown

1шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

8

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

10

1336924C1

HYDRAULIC HOSE

1/2" x 27" fl

1шт.

11

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

296823A2

VALVE

check

1шт.

14

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

15

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

6шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

17

9628503

NUT,3/8"-16, G5

6шт.

18

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

1шт.

19

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

21

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

22

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

Includes O-ring

1шт.

23

345691A1

HYDRAULIC HOSE

3/4" x 36 (915 mm) fl

1шт.

24

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

25

135368A1

HYDRAULIC HOSE

3/4" x 200" (5080 mm) fl

1шт.

26

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

27

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

29

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

30

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8" x 225" coiled

1шт.

31

187562C1

QUICK MALE COUPLING

9/16"-18

1шт.

32

381423A1

BRACKET

valve mounting

1шт.

33

86984798

TAG

warning, case drain

1шт.

33

87527165

WARNING DECAL

Case Drain French

1шт.

34

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

2 1/2" x 18" hyd hose protector

1шт.

35

47685620

KIT

Seal for Hyd motor #2

1шт.
