Запчасти Case IH 1220 (35.116.11) - HYDRAULIC CYLINDER - 87671455, 2 1/2" X 8", GULL WING ATTACHMENT 12 ROW NARROW MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

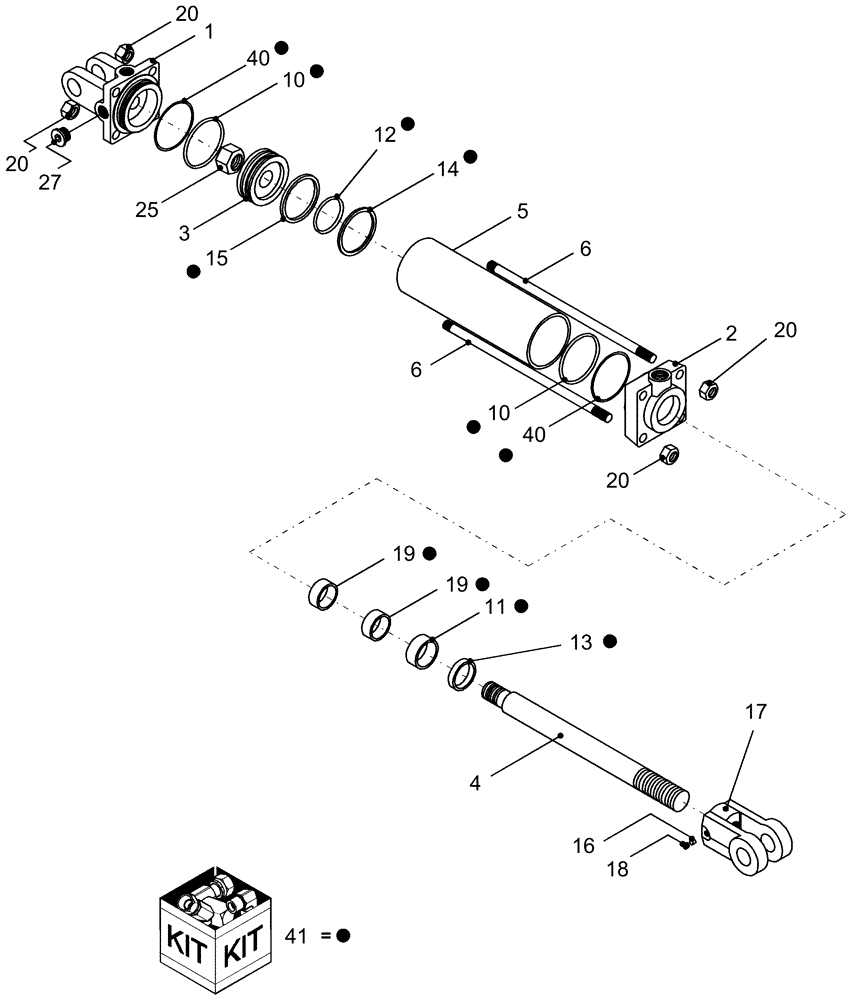

Схема запчастей Case IH 1220 - (35.116.11) - HYDRAULIC CYLINDER - 87671455, 2 1/2" X 8", GULL WING ATTACHMENT 12 ROW NARROW MOUNTED STACKER (35) - HYDRAULIC SYSTEMS
19
5
41
27
13
25
4
20
15
6
6
3
20
40
14
19
40
17
10
20
11
12
10
20
18
1
16
2

Артикул

Название

Примечание

Количество

0

87671455

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

1шт.

1

439275A1

CYLINDER END CAP

cylinder base 2 1/2" bore

1шт.

2

439276A1

CYLINDER END CAP

rod 2 1/2" Monarch 1 1/8" #492673

1шт.

3

439277A1

PISTON

cylinder, 2 1/2" Monarch* part #495046

1шт.

4

7999

SHAFT

cylinder, 1 1/8"-12

1шт.

5

8010

TUBE,2.5" Diameter, 8" Length

cylinder, 2 1/2" x 8" Monarch rephasing

1шт.

6

87409488

THREADED TIE-ROD

3/8"-16

4шт.

10

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 439274A1

1шт.

11

NSS

NOT SOLD SEPARAT

u-cup rod seal

1шт.

Included in repair kit 439274A1

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 439274A1

1шт.

13

NSS

NOT SOLD SEPARAT

wiper, rod

1шт.

Included in repair kit 439274A1

1шт.

14

NSS

NOT SOLD SEPARAT

seal, PTFE

1шт.

Included in repair kit 439274A1

1шт.

15

NSS

NOT SOLD SEPARAT

ring, wear

1шт.

Included in repair kit 439274A1

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

ring, wear

2шт.

Included in repair kit 439274A1

1шт.

20

9628503

NUT,3/8"-16, G5

8шт.

25

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

o-ring backup

2шт.

Included in repair kit 439274A1

1шт.

41

439274A1

SEAL KIT

cylinder 2 1/2" Monarch

1шт.

Выбрано товаров: 30
