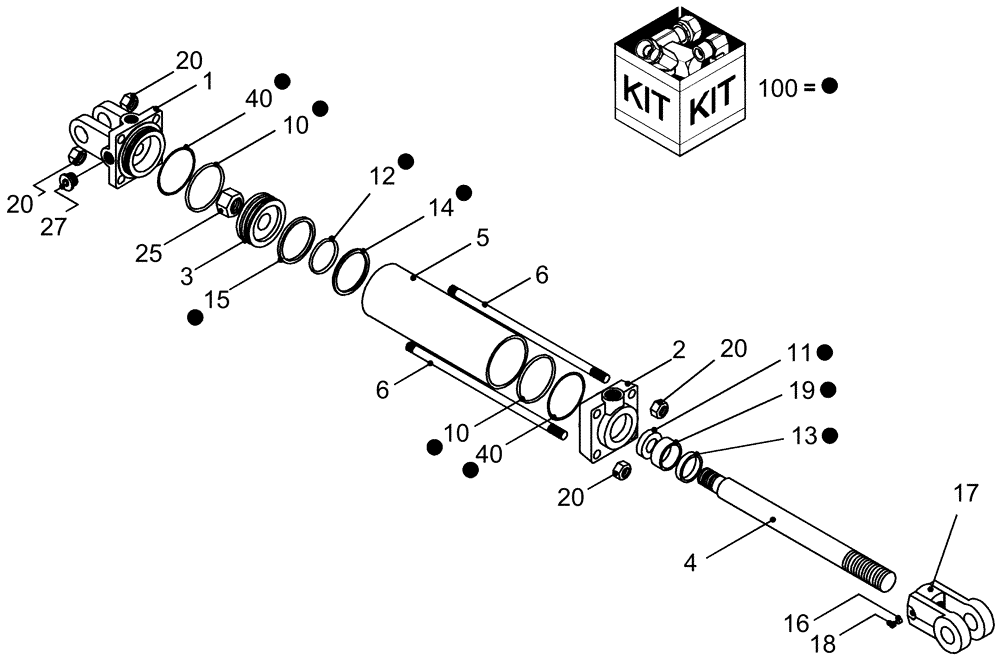

Запчасти Case IH 1220 (35.116.10) - HYDRAULIC CYLINDER - 86989789, ENDWISE TRANSPORT WHEEL - 8 ROW NARROW RIGID TRAILING (35) - HYDRAULIC SYSTEMS

0

86989789

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

4" x 16", 3000 psi, no pins

1шт.

1

87409439

HEAD

cylinder base 4" bore

1шт.

2

87409392

HEAD

cylinder front 4" bore x 1 1/2" rod

1шт.

3

87409466

PISTON

cylinder, 4" bore Monarch #494730

1шт.

4

87409461

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

tube, cylinder

1шт.

6

87409492

THREADED TIE-ROD

hyd cylinder

4шт.

10

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 87403962

1шт.

11

NSS

NOT SOLD SEPARAT

u-cup rod seal

1шт.

Included in repair kit 87403962

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 87403962

1шт.

13

NSS

NOT SOLD SEPARAT

wiper, rod

1шт.

Included in repair kit 87403962

1шт.

14

NSS

NOT SOLD SEPARAT

seal, PTFE

1шт.

Included in repair kit 87403962

1шт.

15

NSS

NOT SOLD SEPARAT

ring, wear

1шт.

Included in repair kit 87403962

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409390

CLEVIS,1 -1/2" - 12

cylinder rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

ring wear

1шт.

Included in repair kit 87403962

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

o-ring backup

2шт.

Included in repair kit 87403962

1шт.

100

87403962

SEAL KIT

hyd cylinder, 4" Monarch with 1 1/2" rod

1шт.
