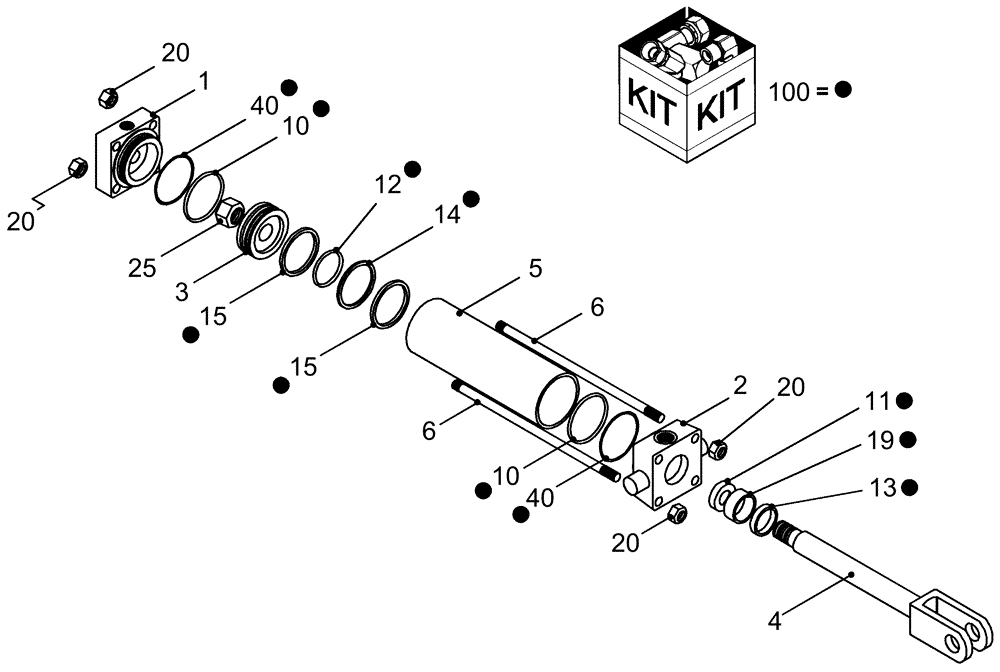

Запчасти Case IH 1220 (35.116.09) - HYDRAULIC CYLINDER - 86991982, DRIVE/CARRYING WHEEL - MASTER, 6 AND 8 ROW RIGID TRAILING (35) - HYDRAULIC SYSTEMS

0

86991982

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/4" x 8", 3000 psi, double acting

1шт.

1

87409441

HEAD

cylinder base 3 1/4" bore

1шт.

2

87409413

HEAD

cylinder front 3 1/4" bore x 1 1/4" rod

1шт.

3

87409468

PISTON

cylinder 3 1/4" bore

1шт.

4

87409458

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

tube, cylinder

1шт.

6

87409490

THREADED TIE-ROD

1/2"-13 x 14 11/16"

4шт.

10

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 87409037

1шт.

11

NSS

NOT SOLD SEPARAT

u-cup rod seal

1шт.

Included in repair kit 87409037

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 87409037

1шт.

13

NSS

NOT SOLD SEPARAT

wiper, rod

1шт.

Included in repair kit 87409037

1шт.

14

NSS

NOT SOLD SEPARAT

seal, PTFE

1шт.

Included in repair kit 87409037

1шт.

15

NSS

NOT SOLD SEPARAT

ring wear

2шт.

Included in repair kit 87409037

1шт.

19

NSS

NOT SOLD SEPARAT

ring wear

2шт.

Included in repair kit 87409037

1шт.

20

280431

NUT,1/2"-13, G5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

40

NSS

NOT SOLD SEPARAT

o-ring backup

2шт.

Included in repair kit 87409037

1шт.

100

87409037

SEAL KIT

hyd cylinder 3 1/4" Monarch with 1 1/4" rod

1шт.
