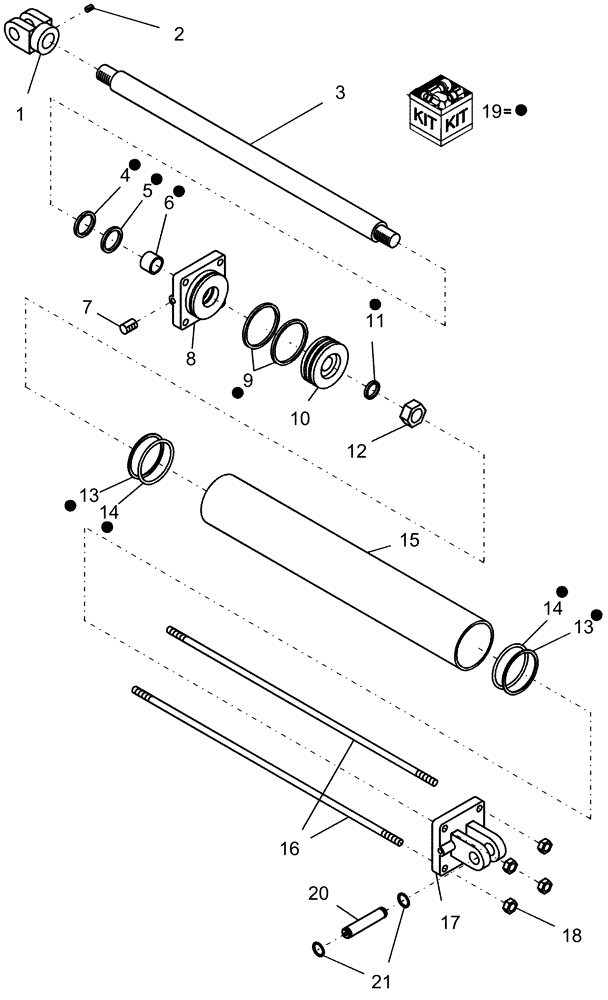

Запчасти Case IH 1220 (35.116.05) - HYDRAULIC CYLINDER - 25325120, MARKER MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

0

25325120

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2 1/2" x 12" 3000 psi

1шт.

1

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

439279A1

PISTON ROD

2 1/2" x 12" Monarch

1шт.

2a

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

8

439276A1

CYLINDER END CAP

rod 2 1/2" Monarch 1 1/8" #492673

1шт.

10

87409477

PISTON

cylinder 2 1/2" bore Monarch #494726

1шт.

12

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

15

87739805

TUBE,3.5 mm DIA x 20 mm L

cylinder 2 1/2" x 12"

1шт.

16

8181

TIE-ROD

threaded cylinder 3/8" x 12"

4шт.

17

439275A1

CYLINDER END CAP

cylinder base 2 1/2" bore

1шт.

18

9628503

NUT,3/8"-16, G5

8шт.

19

25832510

SEAL KIT

2 1/2" dia 3000 PSI

1шт.

20

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

2шт.

21

87019495

SNAP RING,#98, Ext

4шт.
