Запчасти Case IH 1220 (35.110.02) - GULL WING ATTACHMENT HYDRAULICS - 12 ROW NARROW (35) - HYDRAULIC SYSTEMS

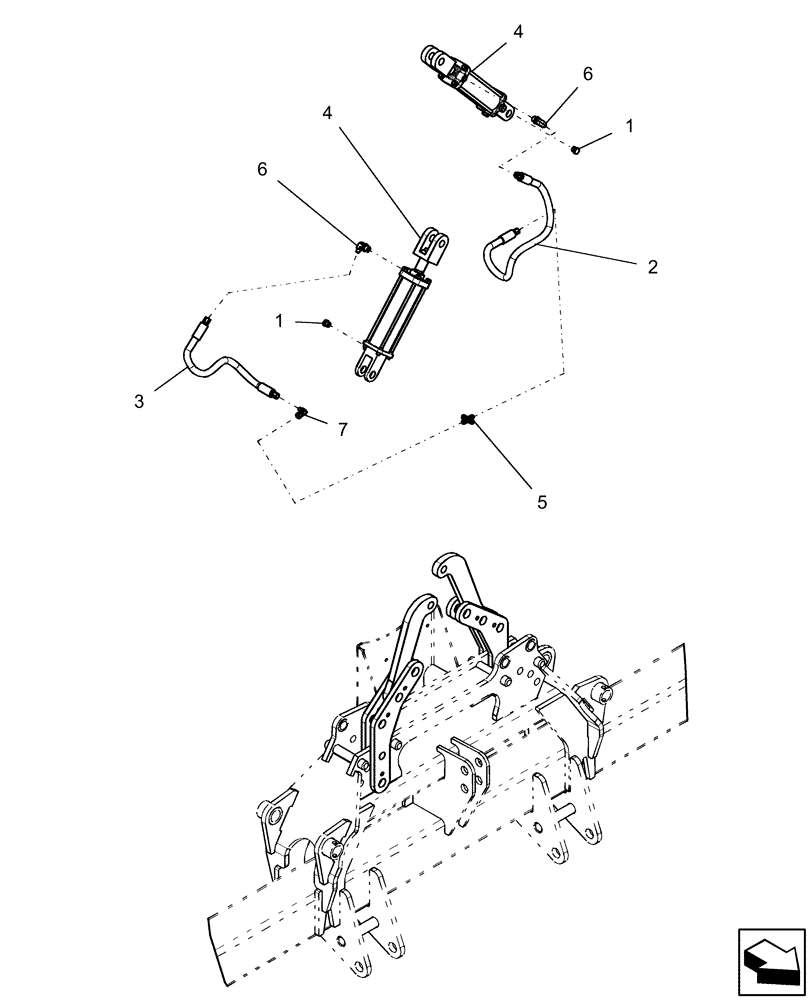

Схема запчастей Case IH 1220 - (35.110.02) - GULL WING ATTACHMENT HYDRAULICS - 12 ROW NARROW (35) - HYDRAULIC SYSTEMS
7
4
4
5
1
2
3
6
1
6

Артикул

Название

Примечание

Количество

1

9479

PLUG

fitting aluminum breather 1/2" mb c/w o-ring

2шт.

2

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

3

1270453C1

HYDRAULIC HOSE

3/8" x 35" long

1шт.

4

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

2шт.

5

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

6

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

7

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

Выбрано товаров: 7
