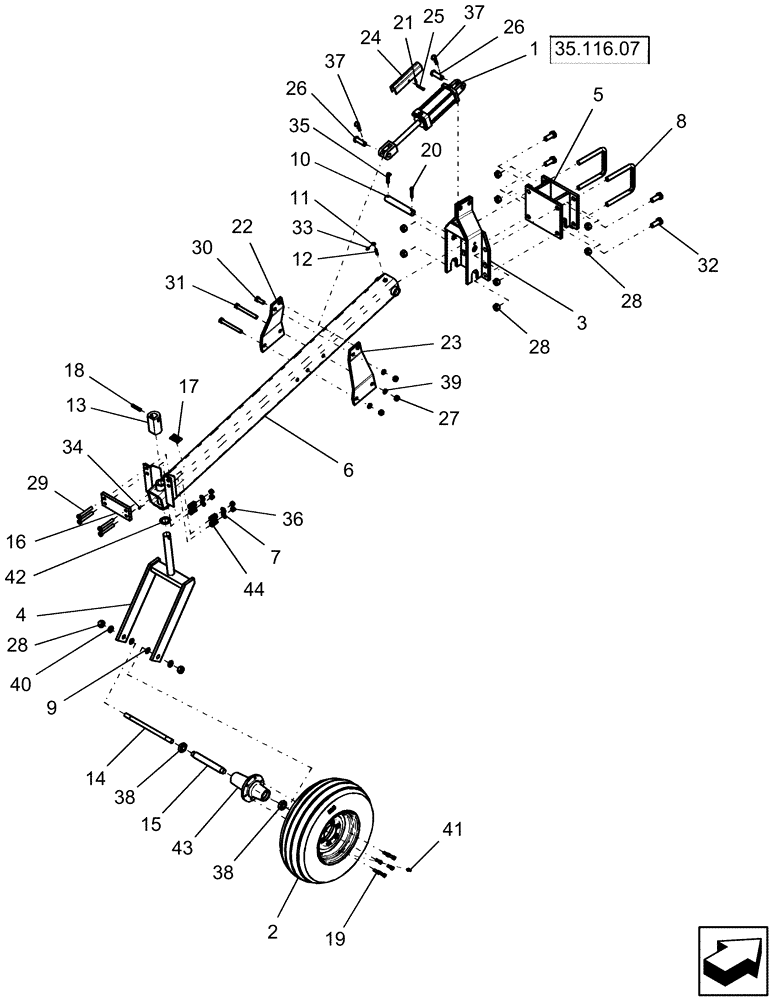

Запчасти Case IH 1220 (35.100.06) - LIFT ASSIST WHEELS - RIGID MOUNTED AND 12 ROW MOUNTED STACKER (35) - HYDRAULIC SYSTEMS

1

87660742

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3 1/2" x 8" 3000 psi

1шт.

2

24831SNA

WHEEL ASSY

with tire 9.5L-14 6PR

1шт.

3

149556C2

BRACKET

assist wheel pivot

1шт.

4

222679A1

YOKE

UNIVERSAL JOINT YOKE assist wheel pivot

1шт.

5

313803A1

BRACKET

assist wheel spacer

1шт.

6

1267964C94

TUBE,134 mm Length

with decal

1шт.

7

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

4шт.

8

58152C2

U-BOLT,U, 1" - 8 x 231mm

BOLT "U" us 1"-8 x 7" wide x 9" deep, 1 3/4'' thread

2шт.

9

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

2шт.

10

100054C2

PIN,38.1mm OD x 251mm L

1шт.

11

105412

ELBOW,90 Degree, 1/8" NPT

1шт.

12

221-1109

PIPE,Nipple, 1/8" NPT x 2"

1шт.

13

222677A1

CAM

snubber

1шт.

14

541759R3

ROD

axle

1шт.

15

541758R1

TUBE

spacer

1шт.

16

137881A1

BAR

cam follower

1шт.

17

1264465C1

PRODUCT GRAPHIC

caution, for safe transport

1шт.

18

86624086

PIN,5/8" x 3", Coiled

1шт.

19

277538A1

BOLT,1/2" - 20 x 1.42"

hex conical, 1/2"-20 x 1 5/32"

6шт.

20

86624071

COTTER PIN,1/2" x 2"

1шт.

21

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

22

149557C2

SUPPORT

LT

1шт.

23

149558C2

SUPPORT

RT

1шт.

24

87413203

BRACKET

with decal, cylinder stop

1шт.

24

1254230C2

WARNING DECAL

1шт.

24

87413403

BRACKET

cylinder stop French

1шт.

24

141614A2

DECAL

cylinder stop (French)

1шт.

24

87565600

LOCK CYLINDER

lift assist

1шт.

Includes decal 1254230C2

1шт.

6 and 8 Row Rigid Trailing

1шт.

24

1254230C2

WARNING DECAL

1шт.

25

86624081

HEADED PIN,9.53mm OD x 57.15mm L

1шт.

26

87023161

HEADED PIN,1" x 3"

2шт.

27

280954

NUT,3/4"-10, G5

3шт.

28

9849633

NUT,1"-8, G5

10шт.

29

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

4шт.

30

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

1шт.

31

9846394

BOLT,Hex, 3/4" - 10 x 7", Gr 8

2шт.

32

426-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

4шт.

33

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

34

86624016

LUBE NIPPLE,3/16" x .47 lg, Drive

1шт.

35

491601R3

PIN

pivot lock "L"

1шт.

36

85700693

NUT,5/8" - 11, Gr C

4шт.

37

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

2шт.

38

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

ball

2шт.

39

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

3шт.

40

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

41

810768C1

VALVE

tire stem VS/936

1шт.

42

462997R2

WASHER

wear

1шт.

43

541757R1

HUB

6 bolt

1шт.

44

137969A1

SPRING

die 1 1/4" od x 5/8" id x 2" long

4шт.
