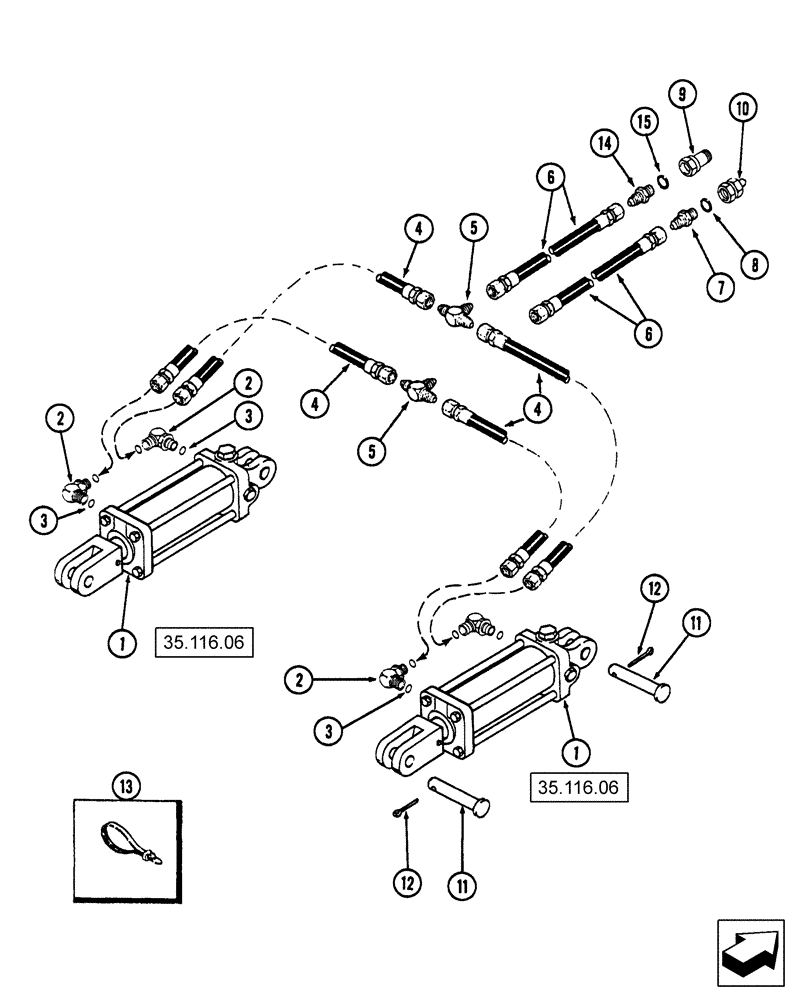

Запчасти Case IH 1220 (35.100.01) - HYDRAULIC SYSTEM - LIFT ASSIST, RIGID MOUNTED MACHINES (35) - HYDRAULIC SYSTEMS

1

86989788

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8", 3000 psi, no pins

2шт.

2

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

4шт.

8 Row Narrow

1шт.

6 Row Wide

1шт.

4

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

4шт.

8 Row Wide

1шт.

4

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

4шт.

6 Row Narrow

1шт.

5

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

6

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

2шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

335733A2

QUICK MALE COUPLING

9/16-18 orb

1шт.

10

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

1шт.

11

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

4шт.

12

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

4шт.

13

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

6шт.

14

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
