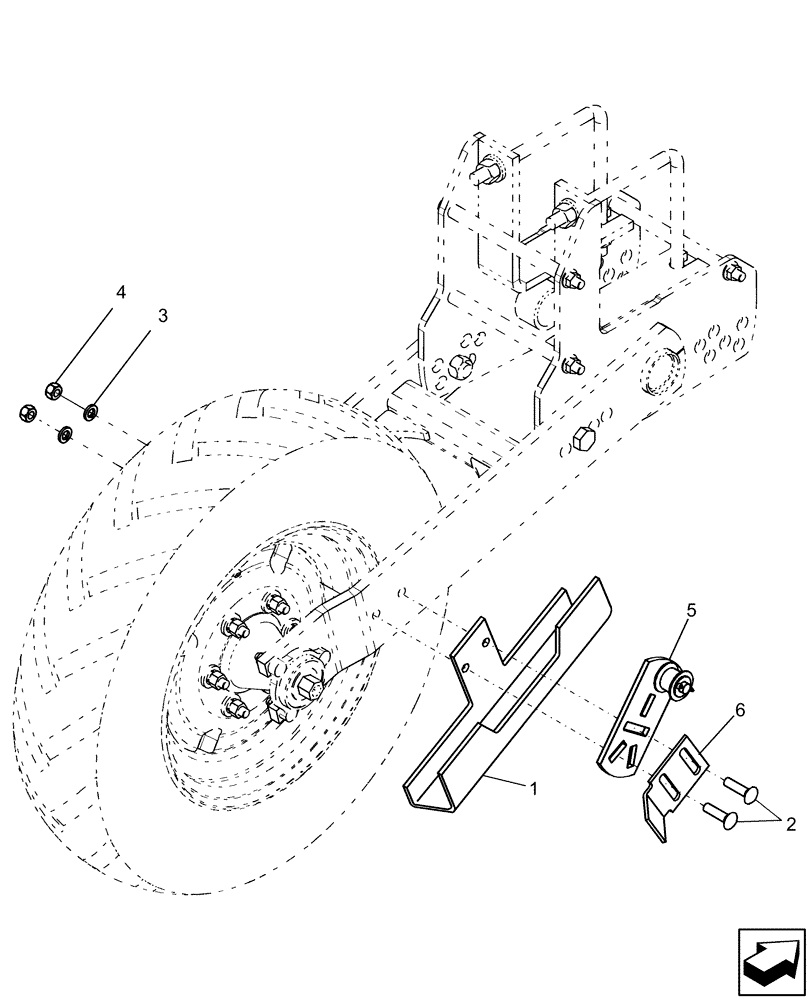

Запчасти Case IH 1220 (90.108.01) - CHAIN GUARD - DUAL ARM CENTERED WHEEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

394137A1

GUARD

chain, centered wheel

1шт.

2

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

87461086

PLATE

idler

1шт.

6

87461087

SCRAPER

chain plate

1шт.
