Запчасти Case IH 1220 (75.200.01[01]) - DUAL GAUGE WHEEL ATTACHMENT - BSN Y9S007001 (75) - SOIL PREPARATION

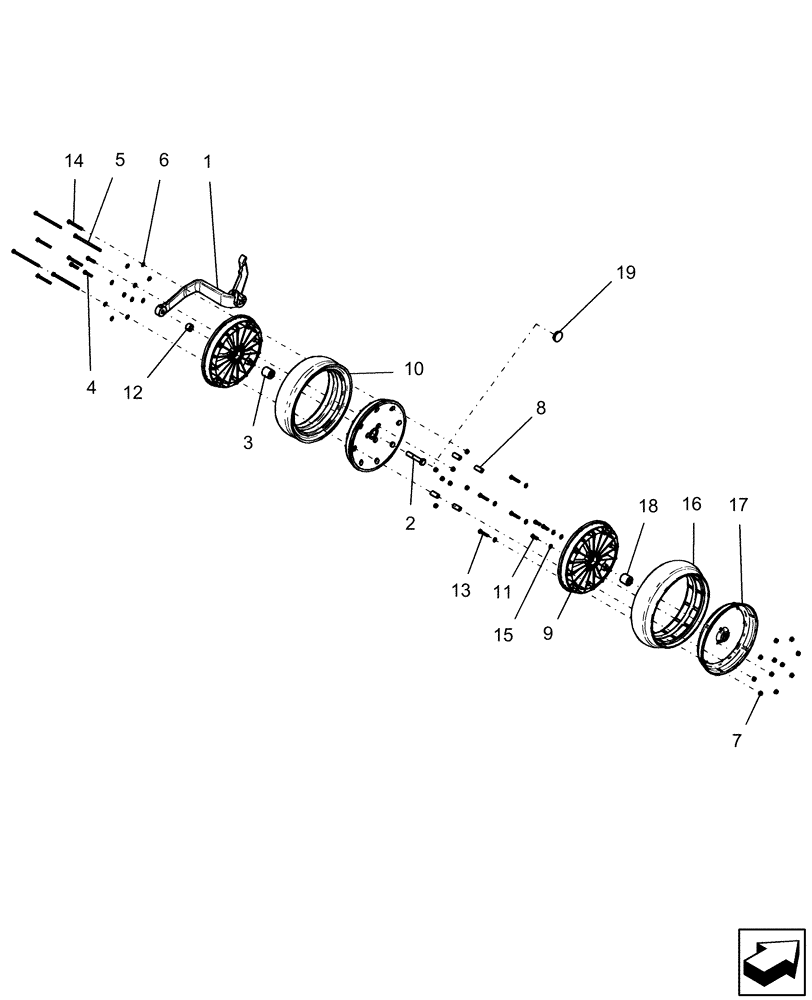

Схема запчастей Case IH 1220 - (75.200.01[01]) - DUAL GAUGE WHEEL ATTACHMENT - BSN Y9S007001 (75) - SOIL PREPARATION
17
6
3
16
2
14
4
19
5
15
12
7
1
11
8
9
13
10
18

Артикул

Название

Примечание

Количество

1

86983486

ARM

cast dual gauge wheel LH

1шт.

1

86983488

ARM

cast dual gauge wheel RH

1шт.

2

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

LH Wheel

1шт.

2

113-1104

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5, LH Thd

1шт.

RH Wheel

1шт.

3

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

4

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

3шт.

5

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

4шт.

6

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

4шт.

7

86050303

NUT

M8 x 1.25, Flg, Cl 8

7шт.

8

950523R1

SPACER,3/8" Pipe x 1 1/2"

4шт.

9

87604021

WHEEL DISC

black nylon half, 16" cleaner wheel

3шт.

10

1969231C1

TYRE/TIRE

offset, 4 1/2" x 16"

1шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

12

428672A1

SPACER

1 1/8" od x 7/8" id x 3/4" long

1шт.

13

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

4шт.

14

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

3шт.

15

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

7шт.

16

87646854

TYRE/TIRE

cleaner wheel 4 1/2" x 16"

1шт.

17

87604612

WHEEL

black steel half, 16" cleaner wheel

1шт.

18

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

19

87713756

PLUG

dome 1 3/8"

1шт.

100

433884A1

WHEEL ASSY

dual gauge wheel

1шт.

Includes ref 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 14, 15, 16, 17 & 18

1шт.
