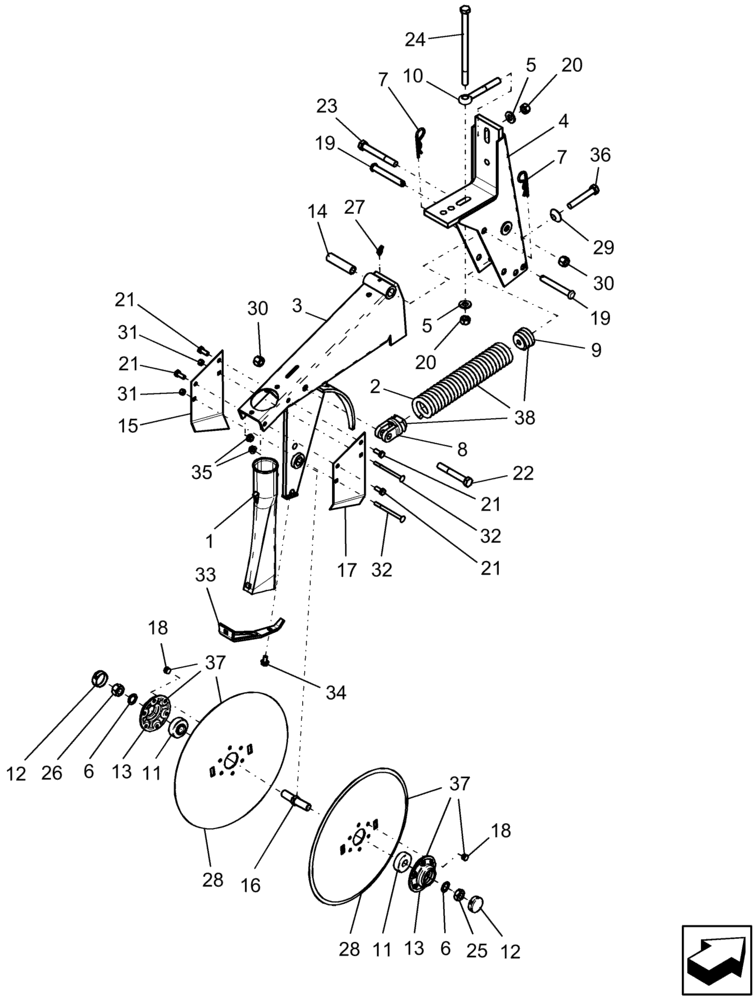

Запчасти Case IH 1220 (75.110.19) - DOUBLE DISC OPENERS, DRY FERTILIZER (75) - SOIL PREPARATION

1

140995C2

TUBE,212 mm Length

drop

1шт.

2

591546R2

SPRING

shank return

1шт.

3

1250742C2

FRAME

boot assembly

1шт.

4

436427A1

HANGER

fertilizer opener

1шт.

5

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

6

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

2шт.

7

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

8

1250700C1

PLUG

spring

1шт.

9

591547R1

PLUG

spring

1шт.

10

136795A2

EYEBOLT

BOLT, EYE 100 mm

1шт.

11

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

2шт.

11

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

12

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

13

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

2шт.

14

1250726C1

TUBE,12.95 mm ID, 19.05 mm OD, 76 mm Length

tube

1шт.

15

1250734C2

FAN BLADE

BLADE LH

1шт.

16

492750R2

BOLT

double disc 5/8"-11

1шт.

17

1250735C2

FAN BLADE

BLADE RH

1шт.

18

86624111

RIVET,6.35mm OD x 14.29mm L

2шт.

19

86624063

HEADED PIN,1/2" x 3 3/4"

2шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

22

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

23

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

24

280831

BOLT,Hex, 1/2" - 13 x 8", Gr 5

1шт.

25

86632556

JAM NUT,Jam, 5/8"-11, G5

1шт.

26

86624023

JAM NUT,Jam, 5/8"-11, G5, LH

1шт.

27

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

28

492756R1

DISC

342.9 mm x 3 mm 6-hole opener/rectangular

2шт.

29

1250736C1

WASHER

pivot

1шт.

30

86992215

LOCK NUT,1/2"-13, GC

2шт.

31

280129

NUT,1/4"-20

2шт.

32

86977729

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3 1/2mm, Gr 5

2шт.

33

140994C1

SUPPORT

scraper, inside

1шт.

34

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

35

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

36

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

37

141464C92

DISC

OPENER ASSY, JD

2шт.

Order Components

1шт.

38

87676277

KIT

spring and plugs assembly

1шт.

38

2117849R91

SPRING

and plugs assembly

1шт.

Order Components

1шт.
