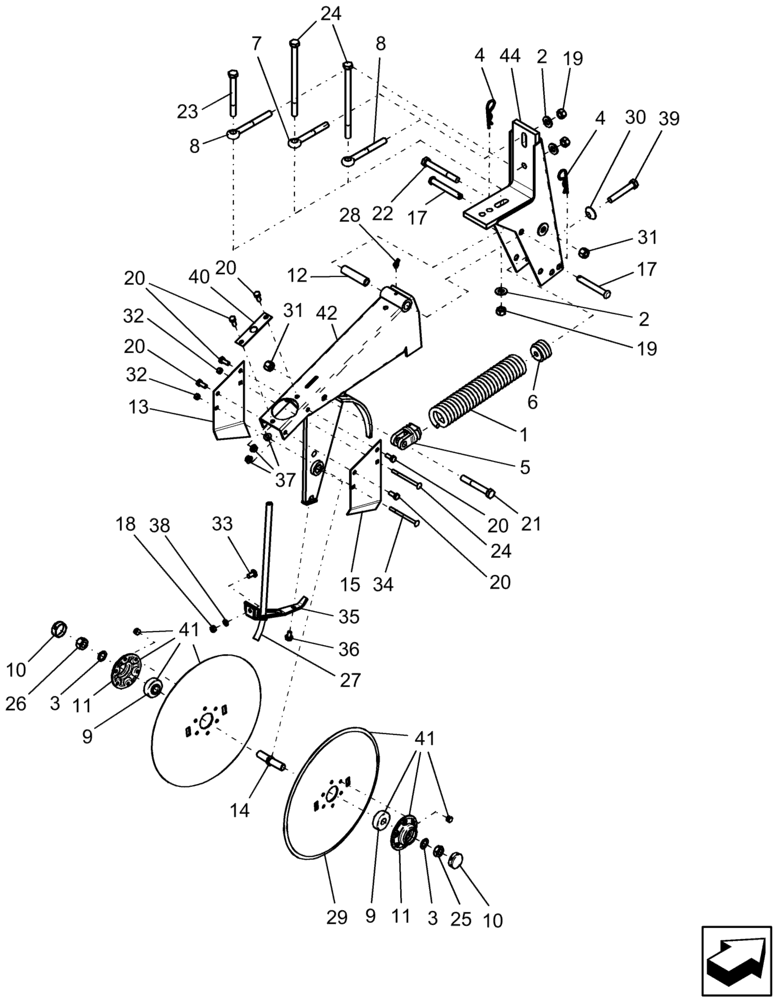

Запчасти Case IH 1220 (75.110.18) - DOUBLE DISC OPENERS, LIQUID FERTILIZER (75) - SOIL PREPARATION

1

591546R2

SPRING

shank return

1шт.

2

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

3шт.

3

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

2шт.

4

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

5

1250700C1

PLUG

spring

1шт.

6

591547R1

PLUG

spring

1шт.

7

136795A2

EYEBOLT

BOLT, EYE 100 mm

1шт.

8

441114A1

EYEBOLT

2шт.

9

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

2шт.

9

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

10

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

2шт.

11

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

2шт.

12

1250726C1

TUBE,12.95 mm ID, 19.05 mm OD, 76 mm Length

tube

1шт.

13

1250734C2

FAN BLADE

BLADE LH

1шт.

14

492750R2

BOLT

double disc 5/8"-11

1шт.

15

1250735C2

FAN BLADE

BLADE RH

1шт.

17

86624063

HEADED PIN,1/2" x 3 3/4"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

280431

NUT,1/2"-13, G5

3шт.

20

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

21

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

22

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

23

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

24

280831

BOLT,Hex, 1/2" - 13 x 8", Gr 5

2шт.

25

86632556

JAM NUT,Jam, 5/8"-11, G5

1шт.

26

86624023

JAM NUT,Jam, 5/8"-11, G5, LH

1шт.

27

147421C2

TUBE,283 mm Length

assembly, liquid fertilizer

1шт.

28

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

29

492756R1

DISC

342.9 mm x 3 mm 6-hole opener/rectangular

2шт.

30

1250736C1

WASHER

pivot

1шт.

31

86992215

LOCK NUT,1/2"-13, GC

2шт.

32

280129

NUT,1/4"-20

2шт.

33

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

34

86977729

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3 1/2mm, Gr 5

2шт.

35

140994C1

SUPPORT

scraper, inside

1шт.

36

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

37

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

38

80681

LOCK WASHER,5/16"

1шт.

39

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1шт.

40

147424C1

STRIP

tube locater

1шт.

41

141464C92

DISC

OPENER ASSY, JD

2шт.

42

1250742C2

FRAME

boot assembly

1шт.

44

436427A1

HANGER

fertilizer opener

1шт.
