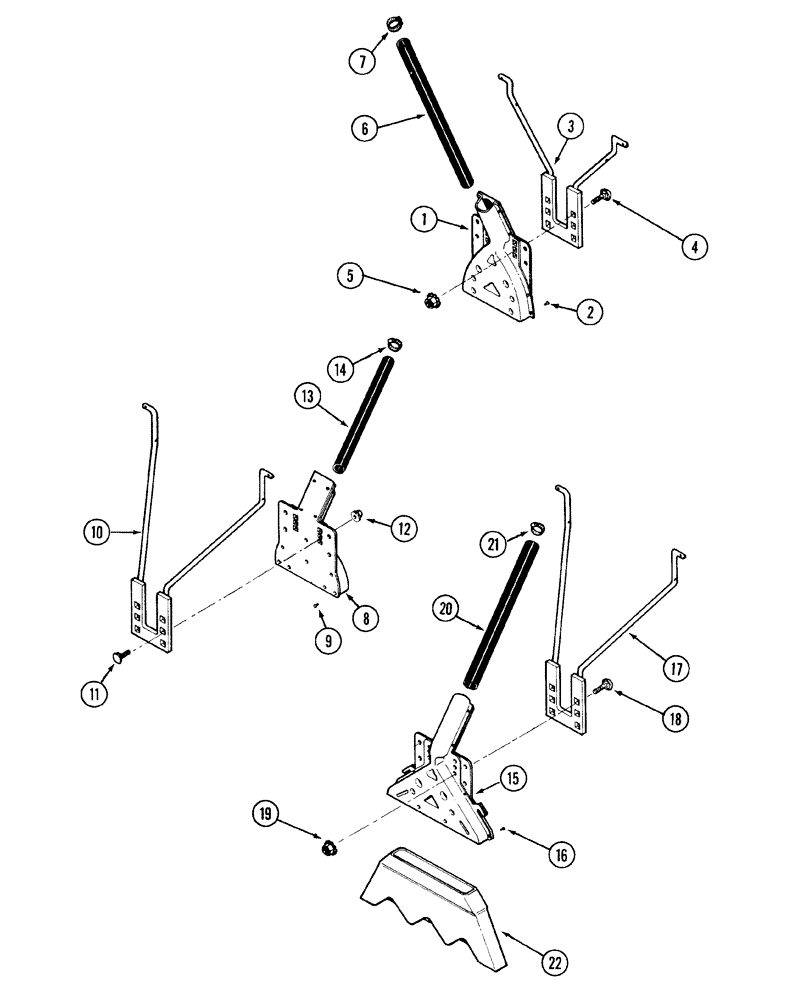

Запчасти Case IH 1220 (75.110.11) - INSECTICIDE SPREADER ATTACHMENTS (75) - SOIL PREPARATION

1

1986065C2

SLINGER

insecticide

1шт.

2

1254229C1

RIVET

oval hd semi-tubular

6шт.

3

410399A1

SUPPORT

assembly

1шт.

4

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

5

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

6

543746R2

HOSE,19.05 mm ID x 279.00 mm

Cut from 1254166C2 bulk hose

1шт.

Cut from 1254166C2 bulk hose.

1шт.

6

1254166C2

TUBE

roll, bulk

1шт.

7

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.

8

1986065C2

SLINGER

insecticide

1шт.

9

1254229C1

RIVET

oval hd semi-tubular

6шт.

10

410393A1

SUPPORT

assembly

1шт.

11

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

12

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

13

141224C1

HOSE,19.05 mm ID x 355.00 mm

356 mm (14") long, cut from 1254166C2 bulk hose, granular chemical

1шт.

Cut from 1254166C2 bulk hose.

1шт.

13

1254166C2

TUBE

roll, bulk

1шт.

14

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.

14a

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

15

1986066C2

DRILL

spreader - herbicide

1шт.

16

1254229C1

RIVET

oval hd semi-tubular

6шт.

17

410393A1

SUPPORT

assembly

1шт.

18

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

19

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

20

141224C1

HOSE,19.05 mm ID x 355.00 mm

356 mm (14") long, cut from 1254166C2 bulk hose, granular chemical

1шт.

Cut from 1254166C2 bulk hose.

1шт.

20

1254166C2

TUBE

roll, bulk

1шт.

21

9706921

HOSE CLAMP,12.7mm - 35mm

1шт.

22

100087C1

DEFLECTOR

herbicide

1шт.
