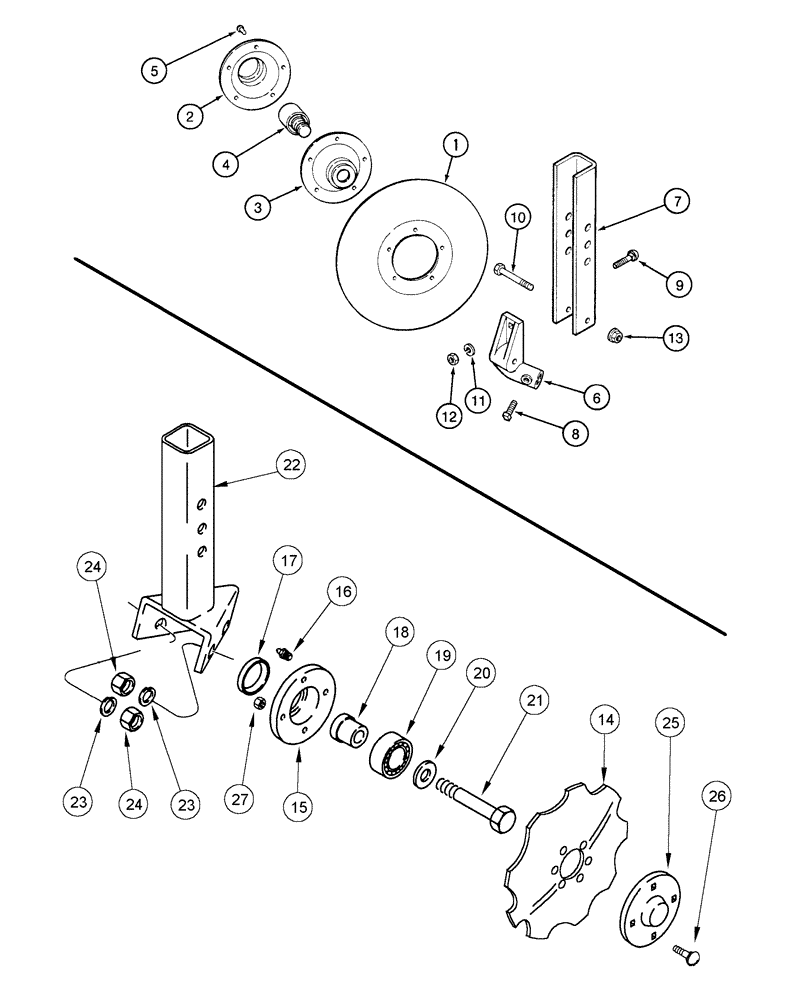

Запчасти Case IH 1220 (75.100.05) - FURROWING DISC ATTACHMENT, NOTCHED FURROWING DISC ATTACHMENT (75) - SOIL PREPARATION

0

1277699C91

DISC

assembly, furrowing

1шт.

0

1277698C91

DISC

assembly, furrowing

1шт.

1

31152R1

DISC

236.2 x 2.5 mm 5-hole marker/covering

1шт.

1

479848R1

DISC

304.8 mm x 3 mm 5-hole full concavity

1шт.

2

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

Outer Disc

1шт.

3

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

Inner Disc

1шт.

4

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

Koyo

1шт.

5

NSS

NOT SOLD SEPARAT

rivet - DISC (order 990323R91 one pound package)

5шт.

5

990323R91

PACKAGE

rivet - disc

1шт.

6

1277697C1

BRACKET

disk furrowing

1шт.

6

1277696C1

BRACKET

disk furrower

1шт.

7

410392A1

SUPPORT

disc furrowing, Years: -01-SEP-08

1шт.

8

86542823

SET SCREW,Sq Hd, 3/8"-16 x 7/8", Cup Pt

2шт.

7

87748373

CHANNEL

furrower, Start Year: 01-SEP-08

1шт.

9

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

1шт.

10

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

12

9628503

NUT,3/8"-16, G5

3шт.

13

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

14

404171A1

NOTCHED DISK

harrow 11.8"

2шт.

15

108136A1

HUB

4 bolt

2шт.

16

87414

LUBE NIPPLE,1/4" - 28

1шт.

17

108137A1

SEAL,34.92mm ID x 47.7mm OD x 6.35mm Thk

bearing

2шт.

18

108135A1

INSERT

trashmaster bearing

2шт.

19

108134A1

BALL BEARING,30mm ID x 55mm OD x 22.99mm W

double row

2шт.

20

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16"

2шт.

21

319458A1

BOLT

5/8"-11 x 3, G5, "D" shaped

2шт.

22

87503480

STEM

row unit attachment with handle

1шт.

23

12034871

WASHER

5/8"

2шт.

24

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

25

108130A1

HUB CAP

casting

2шт.

26

280562

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

27

280736

NUT,5/16"-18, GC

8шт.
