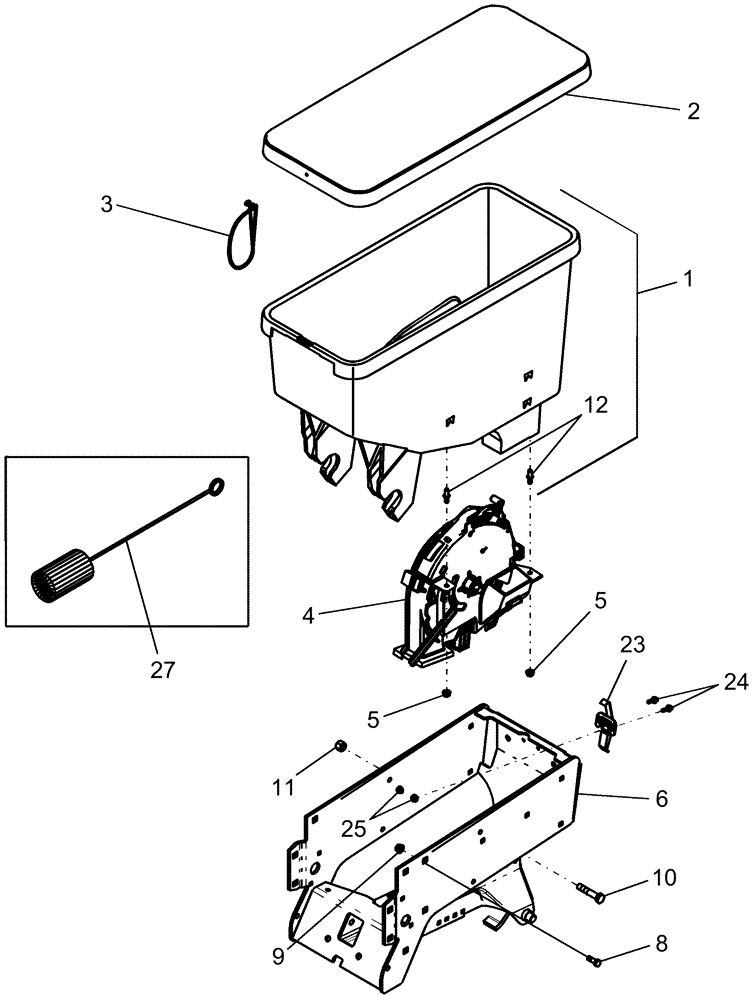

Запчасти Case IH 1220 (75.100.01[02]) - SEED DRIVE - METER AND HOPPER ASSEMBLY ASN YAS007287 FOR 1210, ASN YAS007752 FOR 1220, ASN YAS007415 FOR 1230 (75) - SOIL PREPARATION

1

87429620

HOPPER

Seed ASM Row Unit (If Installing Seed Level Sensor Refer To ASSIST)

1шт.

2

408191A3

COVER

hook, seed hopper

1шт.

3

297749A1

STRAP

hopper lid, retaining

1шт.

4

87501814

PACKAGE

seed meter assembly, Years: -01-MAY-10

1шт.

4

84249865

PACKAGE

Seed Meter Assembly, Start Year: 01-MAY-10

1шт.

5

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

87684860

FRAME

row unit assembly, Model Year 2011 And Prior

1шт.

6

84351569

FRAME

row unit assembly, Model Year 2012

1шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

10

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

11

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

12

449129A1

COUPLING

seed hose

2шт.

23

230311A1

CLAMP

hopper assembly, Model Year 2011 And Prior

1шт.

23

84410488

LATCH

hopper assembly, Model Year 2012

1шт.

24

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

25

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

Not Shown

1шт.

27

346290A1

BRUSH

sensor cleaning - ASM

1шт.
