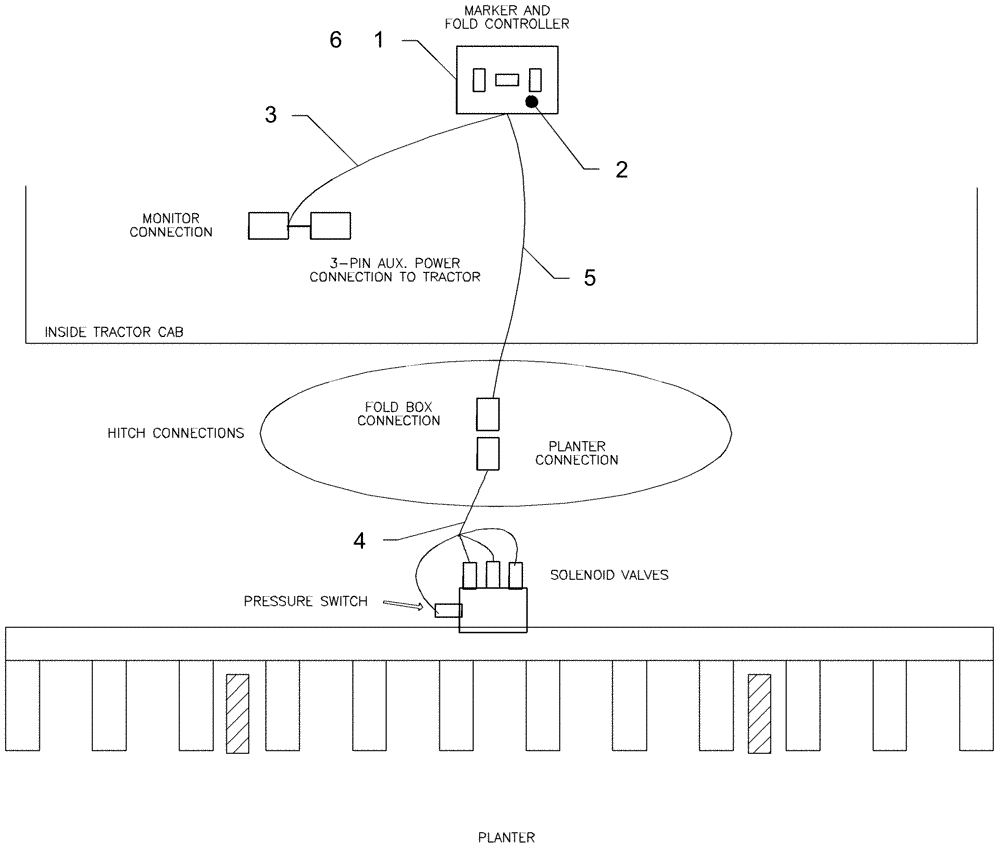

Запчасти Case IH 1220 (55.424.05) - ELECTRICAL - EARLY RISER III - MARKER/FOLD CONTROLLER (55) - ELECTRICAL SYSTEMS

1

429061A1

MODULE

fold box

1шт.

2

441799A1

DECAL

warning - marker control box

1шт.

3

429062A1

HARNESS

power, fold box

1шт.

4

429063A1

HARNESS

signal, fold box

1шт.

5

429431A1

HARNESS

extension, fold box

1шт.

6

435076A1

KIT

bracket, fold box mounting

1шт.

100

87567547

RELAY

12V spdt 40A Bosch with mount bracket

1шт.

Not Shown

1шт.

100

225251C1

ELEC CONNECTOR,Male, 9 Pin

square fla 13-9 pin

1шт.

Not Shown

1шт.

100

87567548

ELEC. TERMINAL PIN

pin 14-18awg

1шт.

Not Shown

1шт.

100

225164C1

ELEC CONNECTOR

plastic 3c receptacle

1шт.

Not Shown

1шт.

100

225166C1

ELEC. TERMINAL PIN,Male, Tin, 1.0 - 2.0mm

1шт.

Not Shown

1шт.

100

439263A1

TERMINAL CONNECTOR,14 - 16 SAE

disc 14-16awg 1/4"

1шт.

Not Shown

1шт.

100

425044A1

TERMINAL CONNECTOR,22 - 18 SAE

terminal disc 22-18awg 1/4" f

1шт.

Not Shown

1шт.
