Запчасти Case IH 1220 (55.424.01) - ELECTRICAL - KIT, AFS FLEX CONTROL CODI (55) - ELECTRICAL SYSTEMS

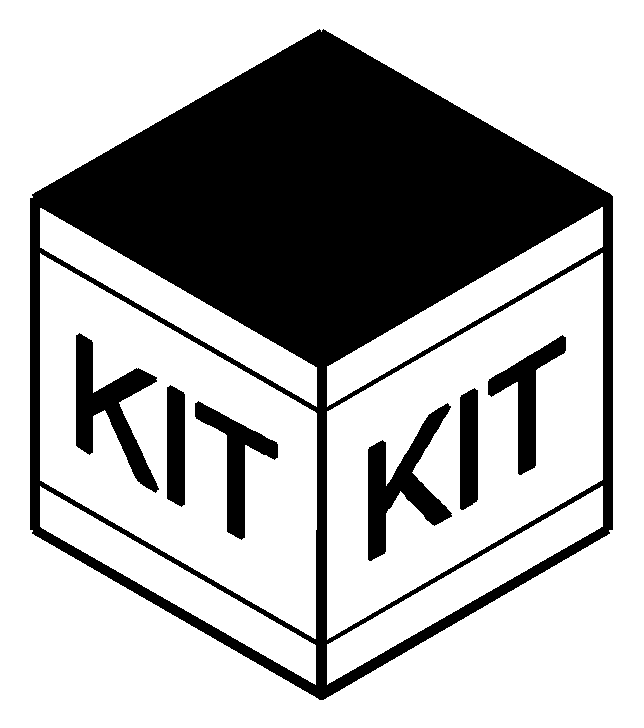

Схема запчастей Case IH 1220 - (55.424.01) - ELECTRICAL - KIT, AFS FLEX CONTROL CODI (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

0

87518225

KIT

AFS FlexControl CODI

1шт.

1

87414764

HARNESS

AFS Jumper

1шт.

2

87414763

HARNESS

FlexControl jumper

1шт.

3

87591471

HARNESS

color display

1шт.

4

87386396

MOUNT

Mount Color Display

1шт.

5

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

15шт.

6

169850C2

CABLE CLIP

Adhesive Back

2шт.

7

345-103

LOCTITE

593

1шт.

8

87366058

INSTRUCTION

AFS and FlexControl

1шт.

9

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

10

136-157

COTTER PIN,Int, 9/64" x .054"

1шт.

11

86624019

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

2шт.

12

406449A1

FASTENER

velcro/AFS receiver

2шт.

13

406450A1

FASTENER

dual lock

2шт.

14

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

15

279293A2

SUPPORT

bracket assembly, AFS beacon antenna

1шт.

16

D135342

ISOLATOR

mount

4шт.

17

86511978

SCREW,Phillips Drive, Flat HD, 5/16" x 1"

4шт.

18

87364530

HARNESS

AFS and FlexiControl

1шт.

19

405029A2

HARNESS

AFS chassis

1шт.

20

405387A2

PLATE

bracket, AFS connector

1шт.

21

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

22

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

23

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

1шт.

24

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

1шт.

25

328265A1

GROMMET

1шт.

26

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

2шт.

27

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

28

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

29

86500689

NUT,M10 x 1.5, Cl 10

2шт.

30

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

31

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

32

405687A1

CABLE

AFS/GPS antenna receiver

1шт.

33

86632690

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

1шт.

34

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

1шт.

35

86509828

LOCK WASHER,M5

1шт.

36

86508813

NUT,M5, Cl 8

1шт.

37

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

38

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

39

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

2шт.

40

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

41

87414515

MOUNTING PARTS

FlexControl display

1шт.

Выбрано товаров: 42
