(55.404.08) - ELECTRICAL - HARNESS, LIGHTING EXTENSION 87703269

Запчасти Case IH 1220 (55.404.08) - ELECTRICAL - HARNESS, LIGHTING EXTENSION 87703269 (55) - ELECTRICAL SYSTEMS

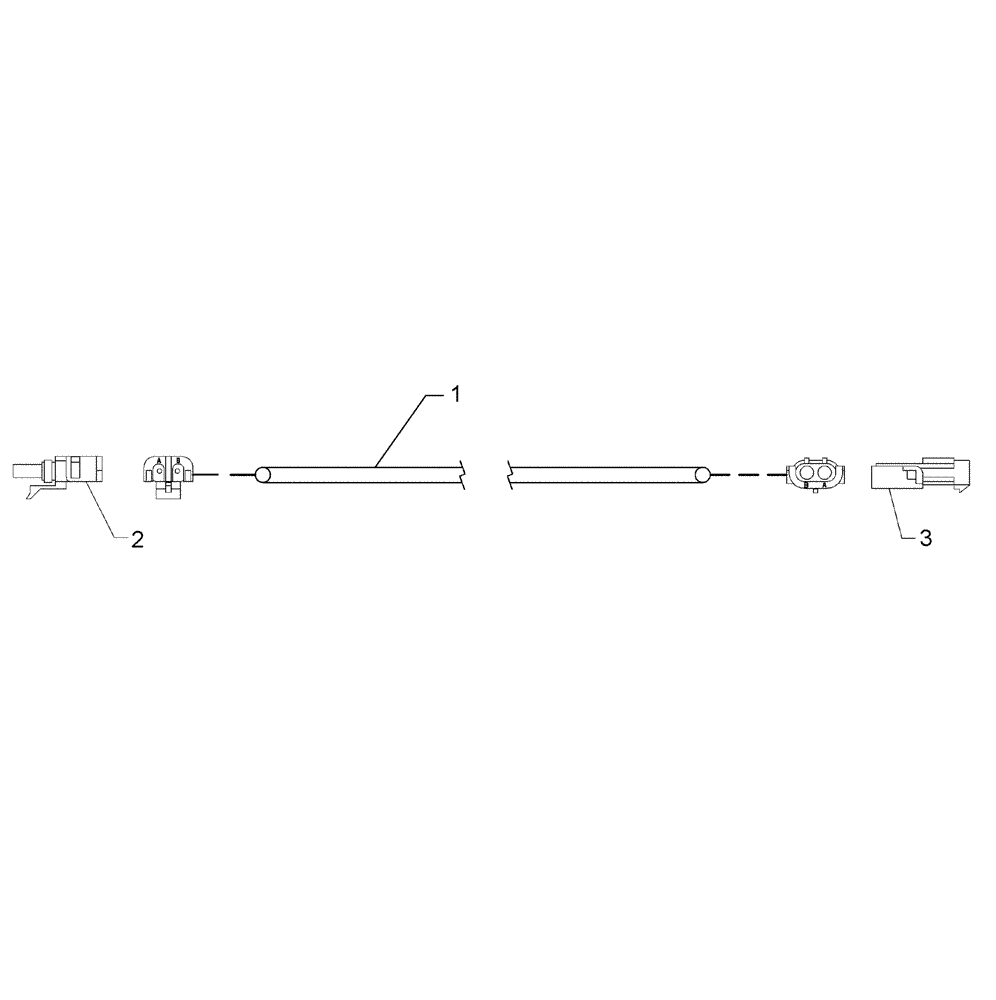

Схема запчастей Case IH 1220 - (55.404.08) - ELECTRICAL - HARNESS, LIGHTING EXTENSION 87703269 (55) - ELECTRICAL SYSTEMS
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87703269

HARNESS

lighting extension 400 mm

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.
