(55.404.06) - ELECTRICAL - LIGHTING ADAPTER CABLE 87539913 ISO TO ASAE

Запчасти Case IH 1220 (55.404.06) - ELECTRICAL - LIGHTING ADAPTER CABLE 87539913 ISO TO ASAE (55) - ELECTRICAL SYSTEMS

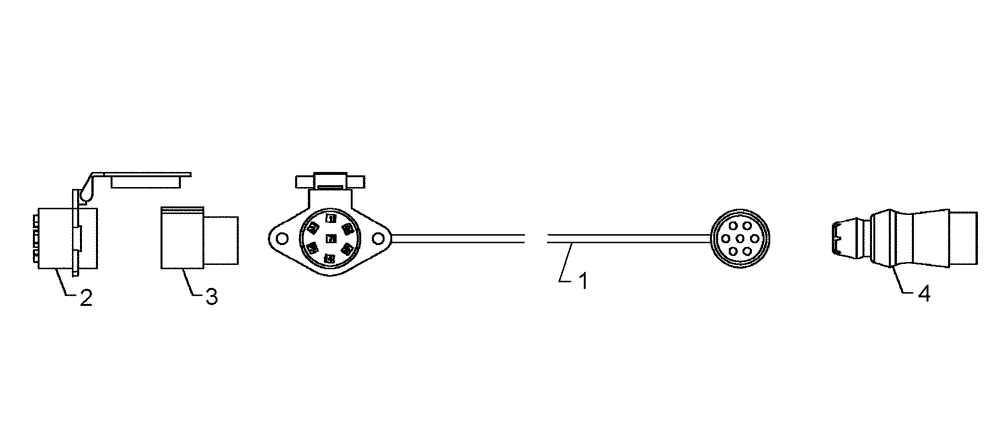

Схема запчастей Case IH 1220 - (55.404.06) - ELECTRICAL - LIGHTING ADAPTER CABLE 87539913 ISO TO ASAE (55) - ELECTRICAL SYSTEMS
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87539913

WIRE HARNESS

lighting adapter, Serial Range: ISO-ASAE

1шт.

2

121645C1

MULTIPOLE CONNECTOR,7 Pin

7 contact

1шт.

3

481849C1

PROTECTIVE COVER

rubber boot

1шт.

4

3118929R1

SOCKET/RECEPTACLE

plug, 7 pin

1шт.
