Запчасти Case IH 1220 (55.404.04) - ELECTRICAL - WARNING LAMP ASSEMBLIES 192052A1 AND 307122A1 (55) - ELECTRICAL SYSTEMS

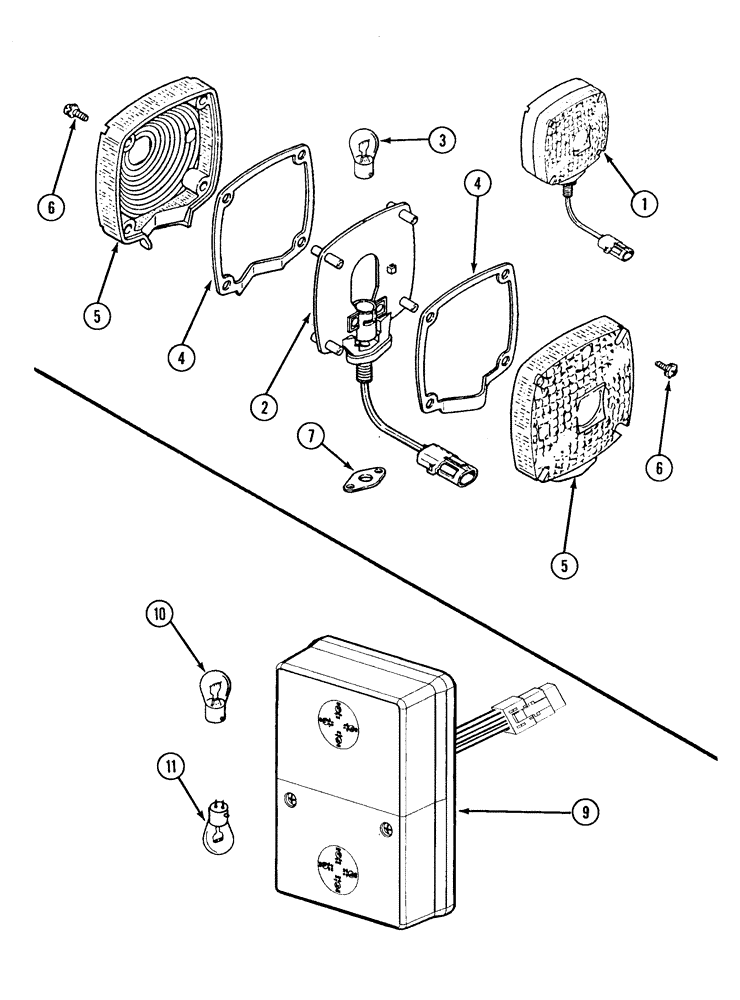

Схема запчастей Case IH 1220 - (55.404.04) - ELECTRICAL - WARNING LAMP ASSEMBLIES 192052A1 AND 307122A1 (55) - ELECTRICAL SYSTEMS
6
5
1
6
10
2
4
3
11
9
5
7
4

Артикул

Название

Примечание

Количество

0

192052A1

REPAIR KIT

warning light (2 wire)

2шт.

1

NSS

NOT SOLD SEPARAT

Order Kit 192052A1 Above

1шт.

2

NSS

NOT SOLD SEPARAT

body Lamp, Order: 192052A1, lamp assembly

1шт.

3

86537133

BULB,C6, #1157, 12.8V

1шт.

4

A43731

GASKET

sealing, lens

2шт.

5

A44202

KIT

lens replacement

1шт.

Includes two lenses and eight screws

1шт.

6

87016394

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

8шт.

7

F63435

GASKET

lamp mounting

1шт.

9

307122A1

LAMP

stop, tail and turn

2шт.

Includes ref #10 and 11

1шт.

10

K310118

BULB

#1076, double contact, single filament

1шт.

11

529068

BULB,#1156, 12V, 21W

1шт.

12

377630C1

CONNECTOR, ELEC

CONNECTOR lamp

2шт.

Not Shown

1шт.

Выбрано товаров: 15
