Запчасти Case IH 1220 (55.404.01) - ELECTRICAL - SAFETY LIGHTING SYSTEM, ALL RIGID MOUNTED FRAMES (55) - ELECTRICAL SYSTEMS

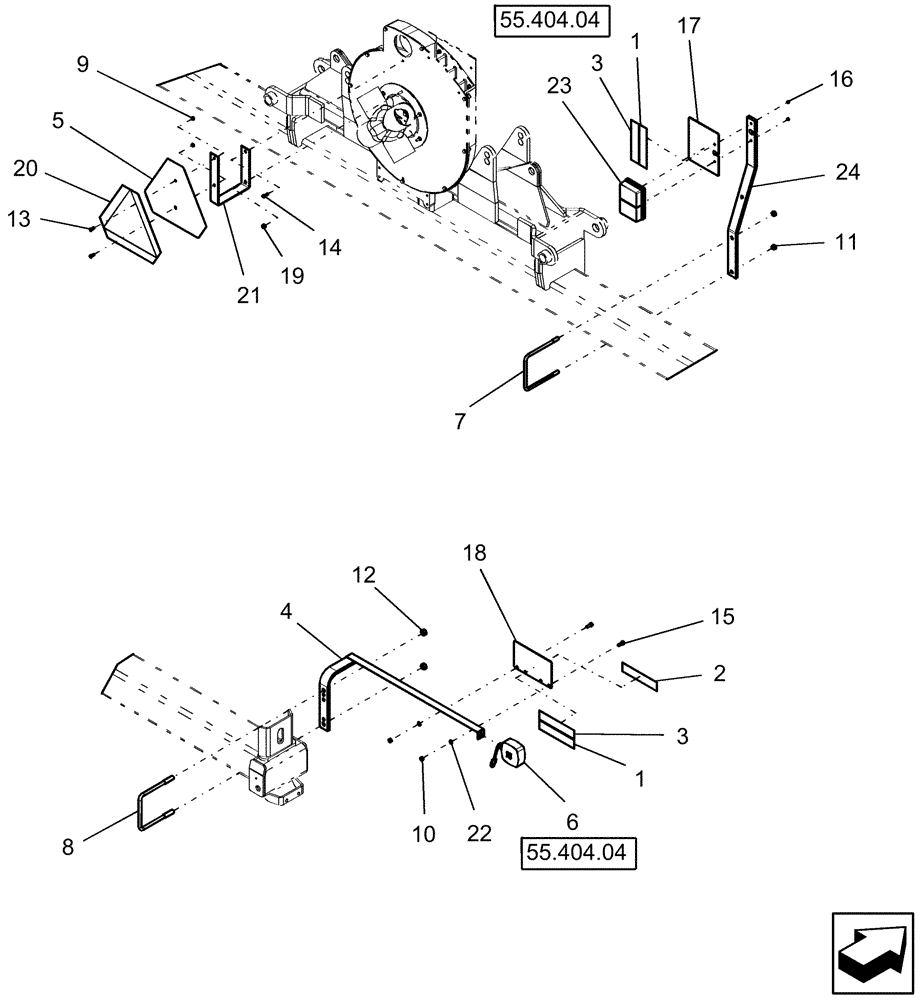

Схема запчастей Case IH 1220 - (55.404.01) - ELECTRICAL - SAFETY LIGHTING SYSTEM, ALL RIGID MOUNTED FRAMES (55) - ELECTRICAL SYSTEMS
21
3
1
3
9
8
13
10
7
6
20
17
24
55.404.04
55.404.04
18
5
1
4
16
23
19
11
12
15
22
2
14

Артикул

Название

Примечание

Количество

1

311863A1

REFLECTOR

Retroreflective Red

4шт.

2

311865A1

REFLECTOR

fluorescent orange

2шт.

3

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

4шт.

4

1333945C5

BRACKET

safety light LH

1шт.

Rigid Mounted

1шт.

8 Row

1шт.

40" Spacing

1шт.

4

323669A1

BRACKET

safety light RH

1шт.

30, 36 & 38" Spacing

1шт.

Rigid Mounted

1шт.

8 Row

1шт.

Shown

1шт.

4

1333944C5

BRACKET

safety light RH

1шт.

Rigid Mounted

1шт.

8 Row

1шт.

40" Spacing

1шт.

Not Shown

1шт.

4

323670A1

BRACKET

safety light LH

1шт.

30, 36 & 38" Spacing

1шт.

Rigid Mounted

1шт.

Not Shown

1шт.

6

NSS

NOT SOLD SEPARAT

light warning

2шт.

6

192052A1

REPAIR KIT

warning light (2 wire)

2шт.

7

133351A1

U-BOLT,1/2" - 13 x 179.20mm W x 210mm L

us 1/2"-13 7" wide x 8 1/4" deep with 1 3/8" thread

2шт.

8

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

280431

NUT,1/2"-13, G5

4шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

14

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

15

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

87016571

NUT,M5, Cl 5

4шт.

17

416851A1

BRACKET

plate, reflector support with decals

2шт.

18

416849A1

PLATE

reflector support

2шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

20

311858A1

DECAL

SMV Emblem

1шт.

Decal applied directly to fan housing on rigid mounted machines

1шт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

23

307122A1

LAMP

stop, tail and turn

2шт.

24

87406672

BRACKET

tail light

2шт.

25

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

Выбрано товаров: 43
