(55.100.30) - ELECTRICAL - HARNESS 84170858, COMPRESSOR PLANTER

Запчасти Case IH 1220 (55.100.30) - ELECTRICAL - HARNESS 84170858, COMPRESSOR PLANTER (55) - ELECTRICAL SYSTEMS

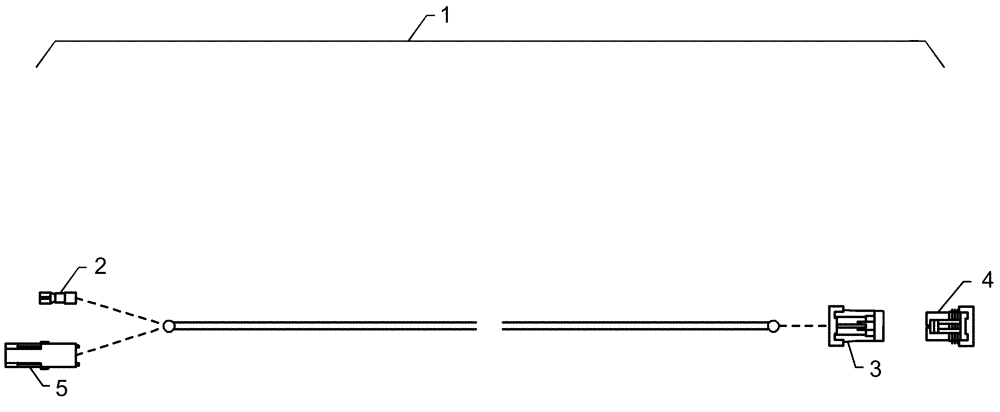

Схема запчастей Case IH 1220 - (55.100.30) - ELECTRICAL - HARNESS 84170858, COMPRESSOR PLANTER (55) - ELECTRICAL SYSTEMS
3
5
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84170858

HARNESS

compressor planter

1шт.

2

225180C1

TERMINAL CONNECTOR,Female, 1.25 - 3 mm2

1шт.

3

292549A1

CONNECTOR, ELEC

CONNECTOR plastic 2c receptacle

1шт.

4

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

1шт.

5

245481C1

CONNECTION,ELECTRIC

1шт.
