Запчасти Case IH 1220 (55.100.27) - ELECTRICAL - HARNESS 87475817, TRUECOUNT CLUTCH (55) - ELECTRICAL SYSTEMS

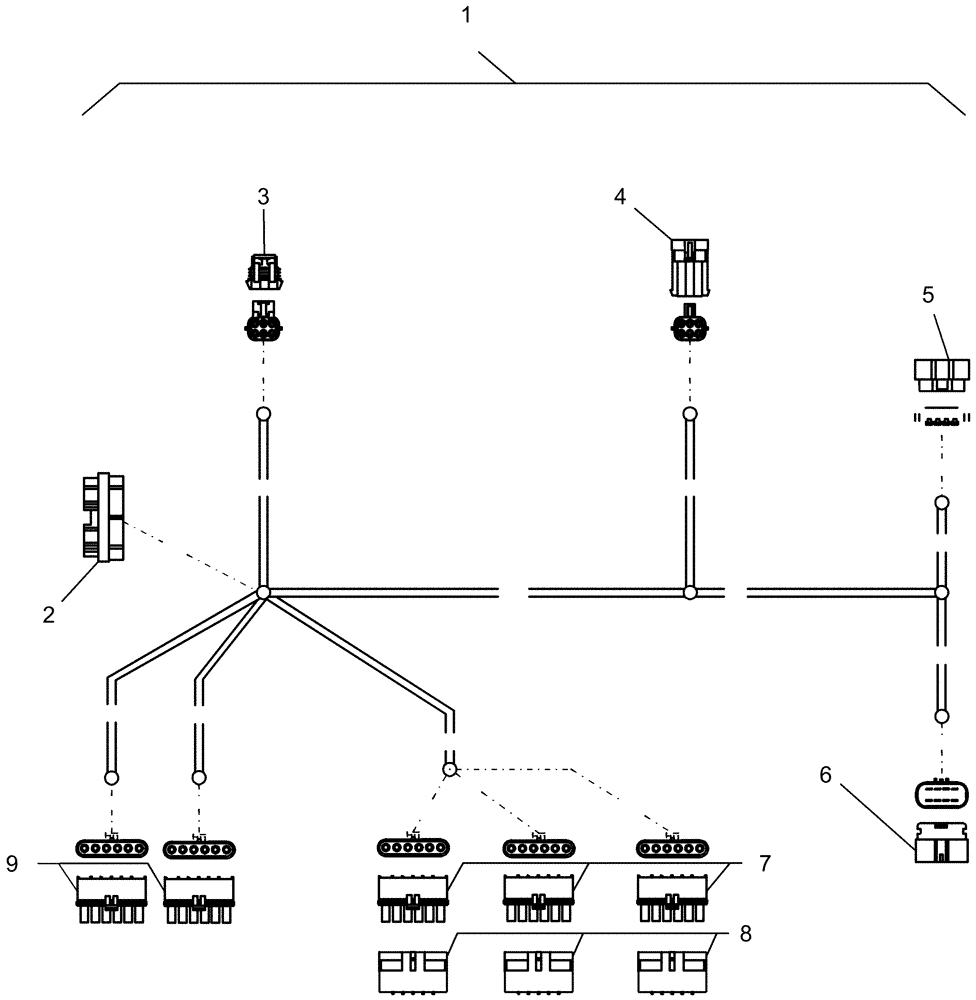

Схема запчастей Case IH 1220 - (55.100.27) - ELECTRICAL - HARNESS 87475817, TRUECOUNT CLUTCH (55) - ELECTRICAL SYSTEMS
1
2
6
5
8
3
9
4
7

Артикул

Название

Примечание

Количество

1

87475817

HARNESS

air clutch, ISOBUS

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

3

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Packard

1шт.

4

256349A1

ELEC CONNECTOR,Male, 6 Pin

6 Pin Plug

1шт.

5

87540289

ELEC CONNECTOR,Female

1шт.

6

87533278

ELEC CONNECTOR,Male

1шт.

7

87692879

MULTIPOLE CONNECTOR,Female, 6 Pole

3шт.

8

87692859

MULTIPOLE CONNECTOR,Male, 6 Pole

ES-A7380

3шт.

9

87692879

MULTIPOLE CONNECTOR,Female, 6 Pole

2шт.

Выбрано товаров: 9
