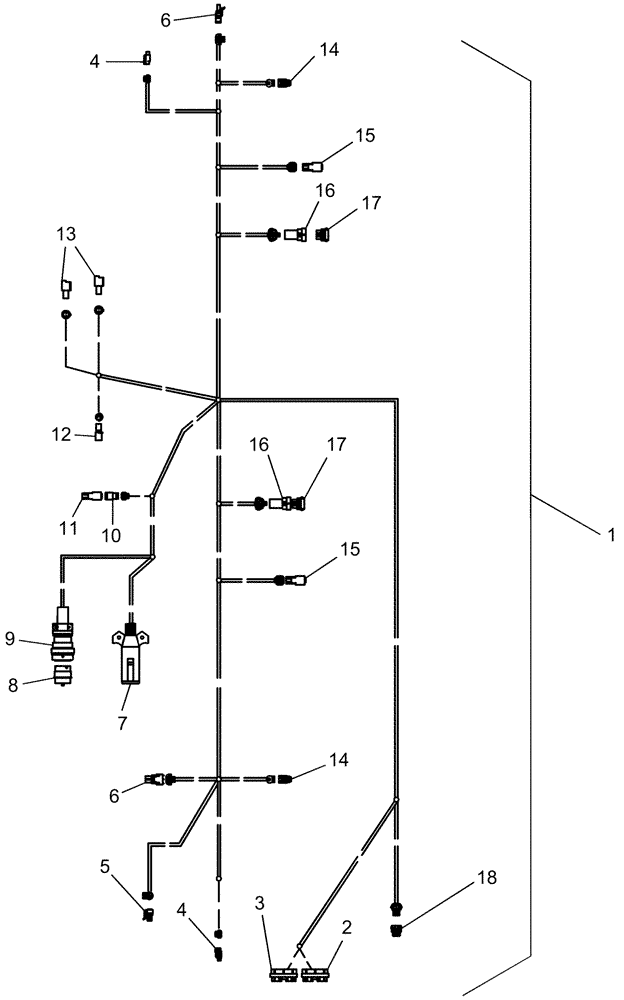

Запчасти Case IH 1220 (55.100.25) - ELECTRICAL - HARNESS 87755005 RIGID TRAILING MECHANICAL (55) - ELECTRICAL SYSTEMS

1

87755005

HARNESS

rigid trailing mechanical ISOBUS

1шт.

2

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

3

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

4

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

2шт.

5

198456A1

ELEC CONNECTOR,Female

3-Way Receptacle ES-A7380

1шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

7

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

8

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

9

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

10

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

11

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

12

1160576C1

ELEC CONNECTOR,Male, 2 Pin

2 contact

1шт.

13

1160577C1

ELEC CONNECTOR,Female, 2 Pin

CONNECTOR 2 contact

2шт.

14

194788A1

CONNECTOR, 2-POLE

2 Cavity

2шт.

15

277905A1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

2шт.

16

296483A1

ELEC CONNECTOR,Male, 5 Pin

Packard 150 series receptacle

2шт.

17

296482A1

ELEC CONNECTOR,Female, 5 Pin

Packard 150 series plug

2шт.

18

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Packard

1шт.
